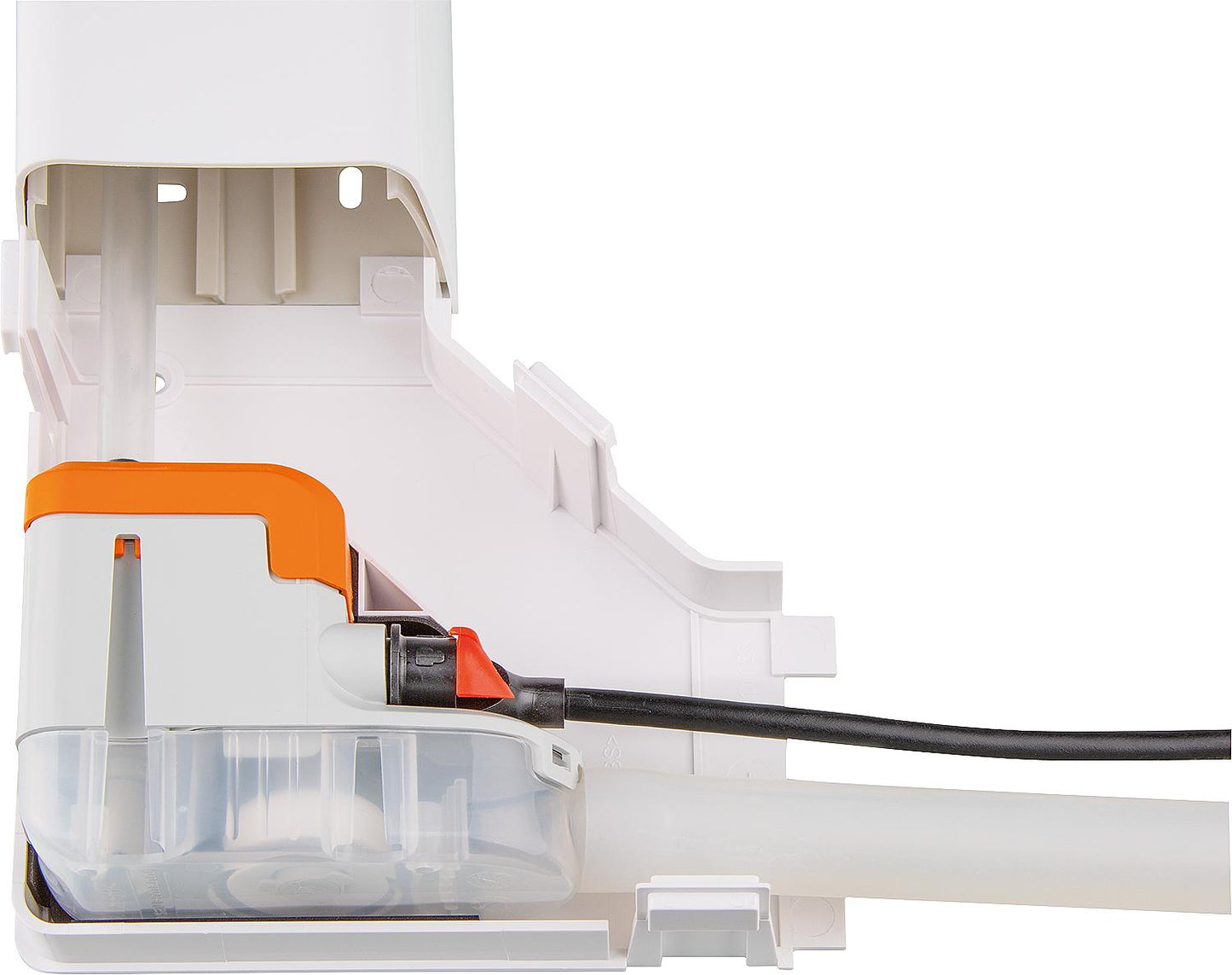

DELTA PACK condensate oscillating piston pump

• For draining condensate from air conditioning units with refrigerant lines Ø max. 1016 mm
• Installation next to the air conditioning units
• Angle lined with vibration-absorbing material
• Transparent, removable tank
• Ready-to-connect kit

Technical data:

• Maximum flow rate: 20 l/h
• Maximum delivery head: 10 m
• Maximum operating noise: 22 dBA
• Operating voltage: 230V, 50/60 Hz
• Power consumption: 14 W
• Protection class: IPX4
• Alarm contact: Normally open, 8A resistive load 250V
• Dimensions (L x W x H): 750 x 80 x 60 mm
• Color: RAL 9003 signal white

Scope of delivery:

• Integrated float switch
• Transparent PVC hose, inner diameter 6 mm – L=1 m, insulated to 800 mm, with ventilation valve
• 1.5 m plug cable: 2 wires for power supply, 2 wires for safety shutdown
• 2-piece angled piece (housing and cover)
• Ceiling penetration piece (covering the hole in the suspension)
• Rubber seal between elbow fitting and air conditioner 650 mm hose inner diameter 15 mm (connection to the air conditioner)
• Ventilation hose
• 6 screws and dowels for mounting the cable duct and angle piece
• 4 double wire clamps Ø 16 mm, 1 double wire clamp Ø 6 mm
• 2-part channel 750 x 80 x 60 mm (L x W x H)
