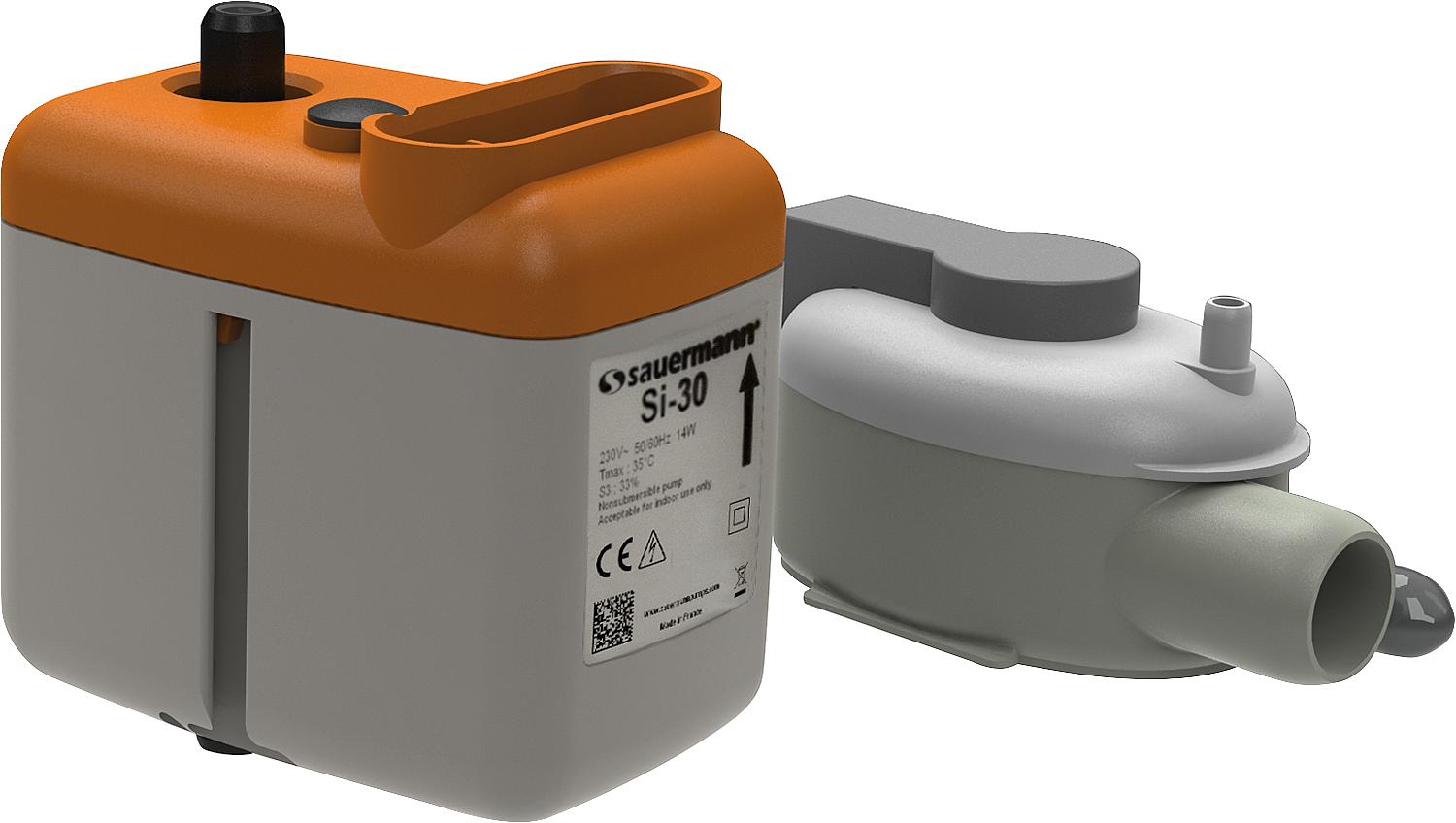

Condensate pump SI 30 with separate float module, replaces SI 3080

• Split design with separate float module, compact dimensions
• For air conditioners up to 20 kW

Technical data:

• Maximum flow rate: 20 l/h
• Maximum suction height: 3 m
• Maximum delivery head: 10 m
• Noise level: ≤ 27 dBA
• Power consumption: 14 W
• Voltage: 230 V/ 50 Hz
• Alarm contact: NC 8 A resistive load
• Overheating protection (shut-off point): 90°C
• Hose connection: 6 mm inner diameter (PVC)
• Dimensions (L x W x H): Pump block: 66 x 43.5 x 60 mm, Level switch: 55 x 38 x 37.5 mm
