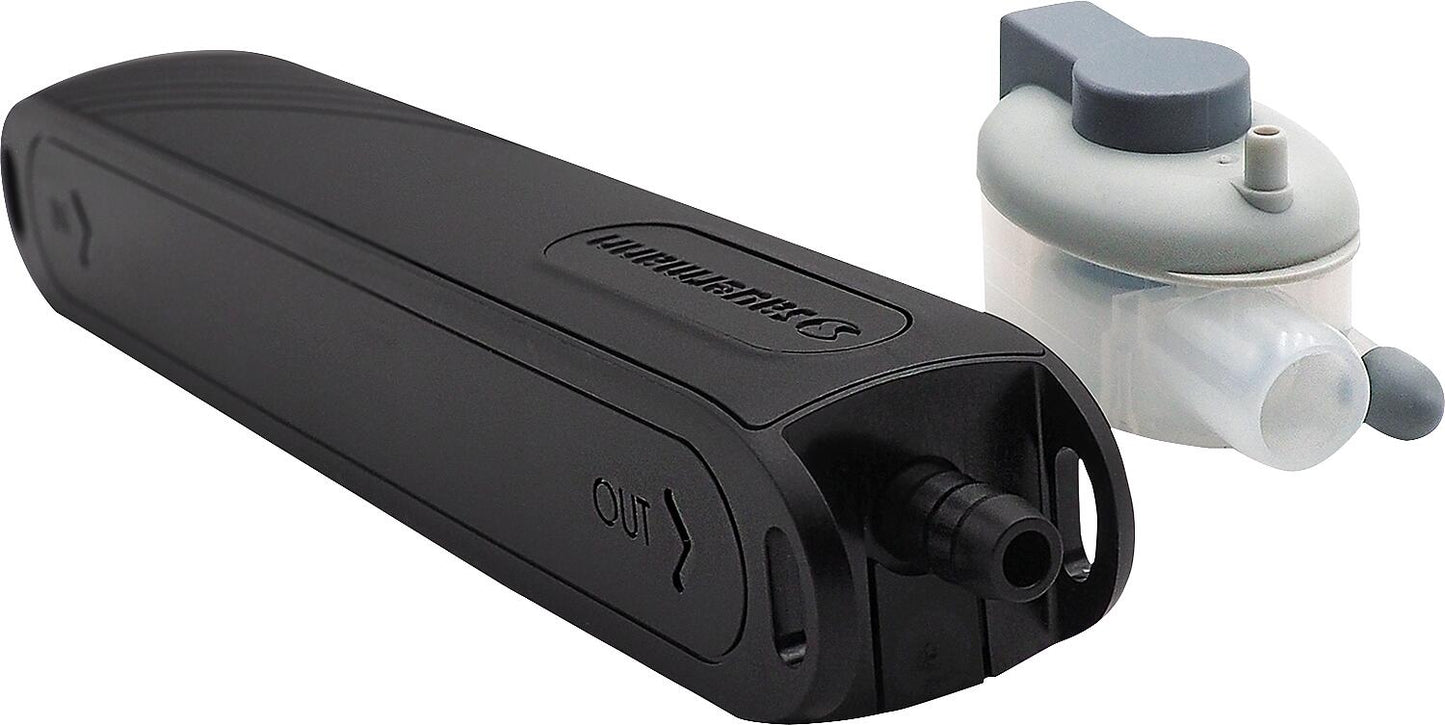

Sauermann Si-20 condensate oscillating piston pump

• For the drainage of condensate in air conditioning units
• The slim housing allows for installation in cable ducts and air conditioning units.
• For air conditioners up to 20 kW

Scope of delivery:

• Si20
• Float switch SI2958
• PVC hose, 60 mm long, with ventilation valve
• Mounting kit
• Power cable 1.5 m
• 90° angled connection

Technical data:

• Maximum flow rate: 20 l/h
• Maximum suction height: 3 m
• Maximum delivery head: 10 m = 4 l/h
• Maximum pressure: 14 m = 0 l/h
• Operating noise: 19 dBA
• Operating voltage: 230 V/AC
• Power consumption: 15 W
• Protection class: IPX2
• Pump dimensions (L x W x H): 180 x 160 x 27 mm
