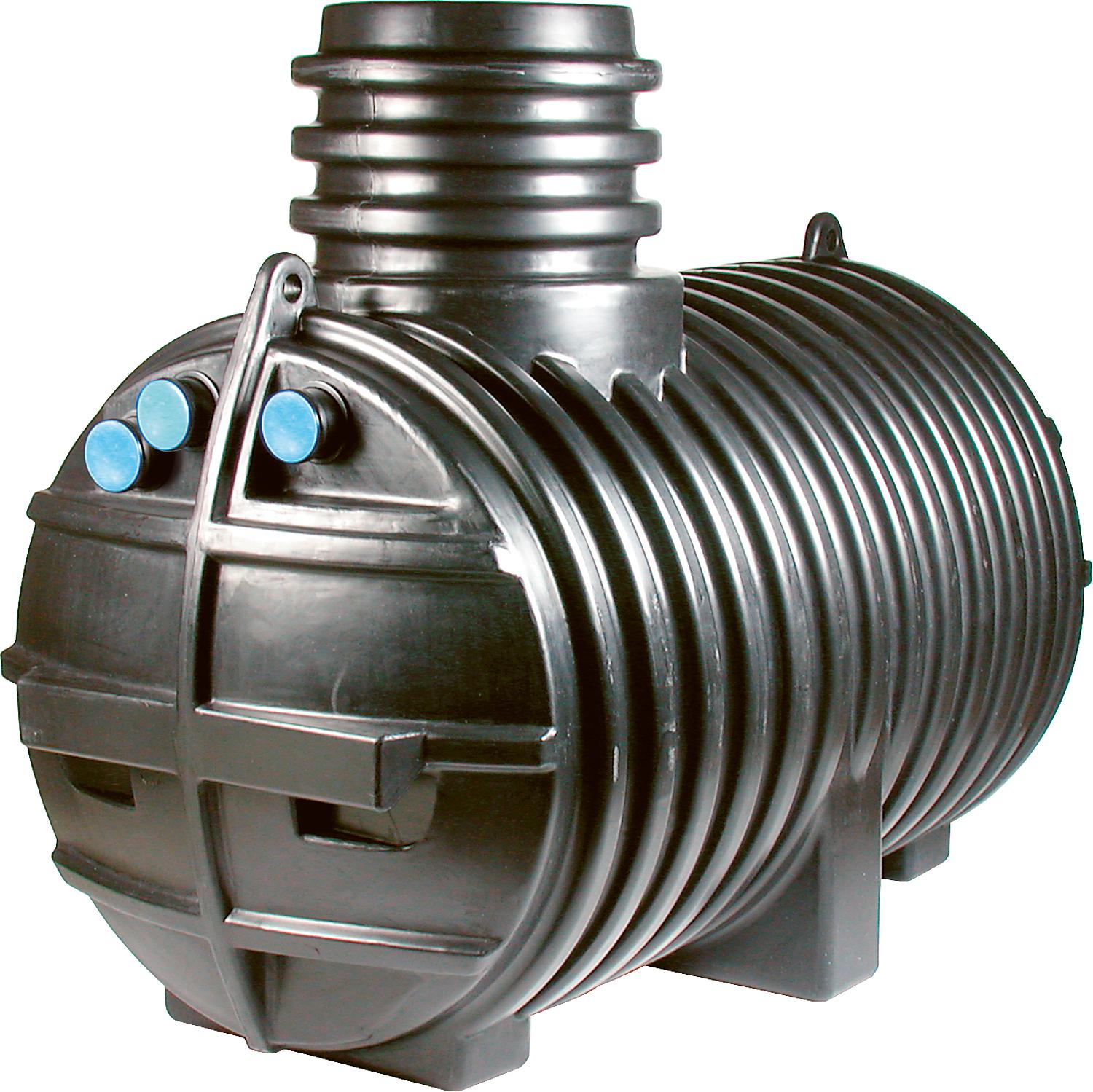

• Robust plastic cisterns with molded-on dome shaft
• A telescopic segment with a plastic cover is available for shaft construction.
• 3300, 5000 or 7000 liters, expandable by simply connecting several cisterns
• The MAXIMA cisterns are pre-assembled with a changeover filter/PURAIN (including integrated backflow preventer/small animal protection and overflow skimmer) as well as the inlet calming device and the siphon.
• The BASIS cisterns are equipped with three DN 100 connections for inlet, overflow and supply, including lip seals.
• Technical data:
• Material: PE
• Connection: DN 100
• Maximum load: Class A – walkable
• Car-accessible telescopic dome (93 111 98) only for the ET-7000 cisterns
• No returns after ordering
• Delivery without telescopic segment and shaft cover
• Not approved for above-ground installation
• Gross volume: approx. 3300 l
• Width: 1400 mm
• Length: 2460 mm
• Height without telescopic segment: 1805 mm
• Tank shoulder height: 1450 mm
• Inlet depth/supply: 1225 mm
• Drainage depth: 1140 mm
• Weight: 118 kg
• Material: PE
• Max. soil cover of the tank shoulder: 809 mm
• Inlet, supply lip seal: DN 100
• Drain lip seal: DN 100
• Tanks with a capacity of 3300 l are supplied with a loading platform.
• A suitable dome shaft (order no. 93 964 01) can be ordered separately.
| Brand | INTEWA |
|---|---|
| Manufacturer part number | 110055 |
| Unit price | CHF/piece |
| Type | ET-3300 BASE |
