• For the INTEWA STANDARD systems, we offer the DIN 1989-1 compliant
Drinking water replenishment into the cistern via a free outlet
with slow-closing solenoid valves in ready-to-connect refill units
in size DN 15 (1/2")

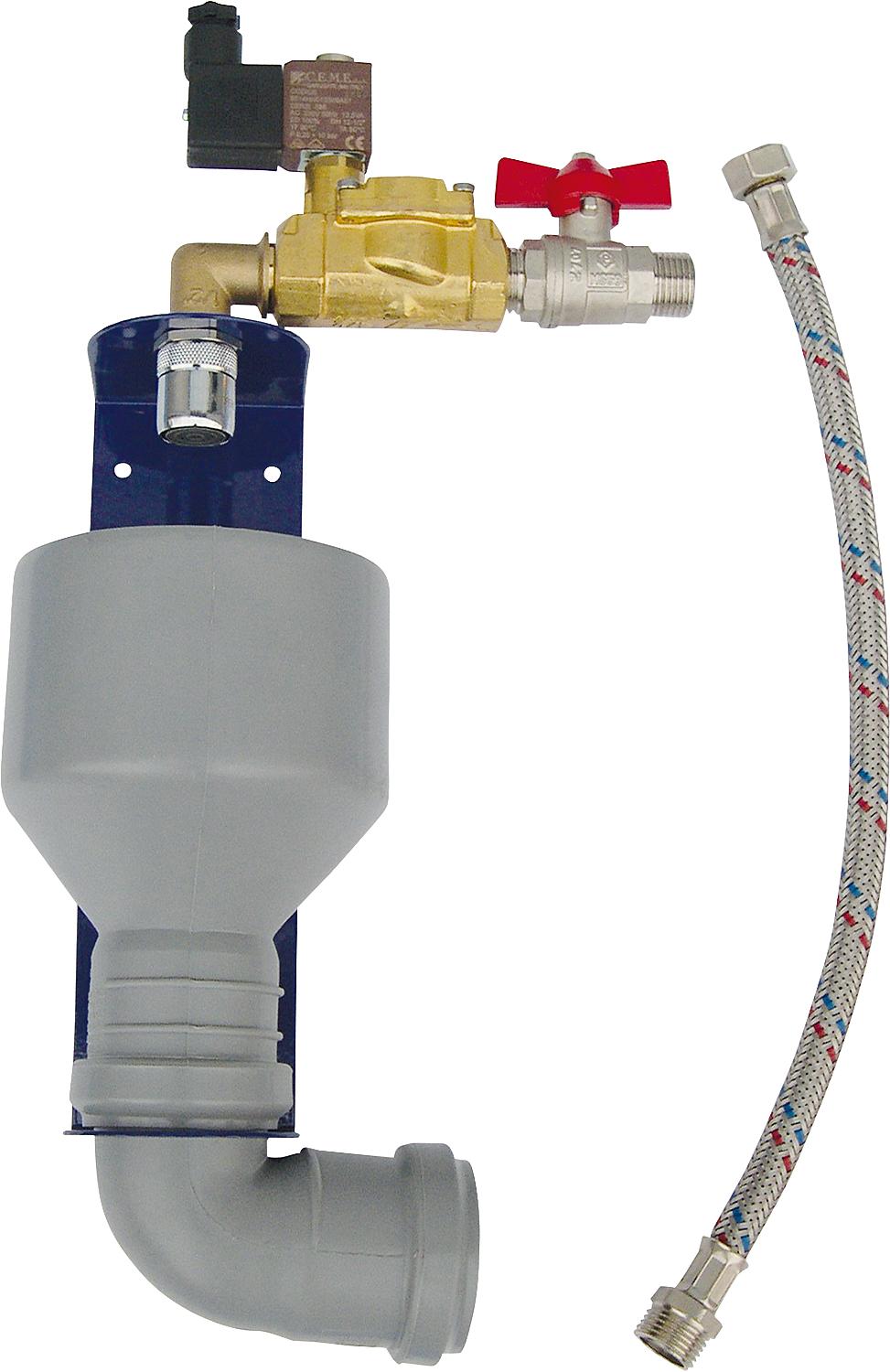

• Refill unit with 24 V DC valve and level indicator RMD-24
• Safety shutdown of the replenishment system after 2 hours
• Float switch with plug housing, mains connection: 230 V AC/50 Hz
• Design: 2/2-way pilot-operated
• Valve material: Brass
• Operating voltage: 24 V DC
• Power consumption: 10 W
• Flow rate (kv) ∆p= 1 bar: 35 l/min
• Flow rate (kv) ∆p= 4 bar: 65 l/min
• Feed line: DN 50 (2")
• Cable connection: 2 m, 2-core
• Drinking water connection: DN 15 (1/2")
• For direct connection to the drinking water supply with flexible pressure hose and union nut
• With integrated dirt trap/shut-off valve
| Brand | INTEWA |
|---|---|
| Manufacturer part number | 220031 |
| Unit price | CHF/piece |
