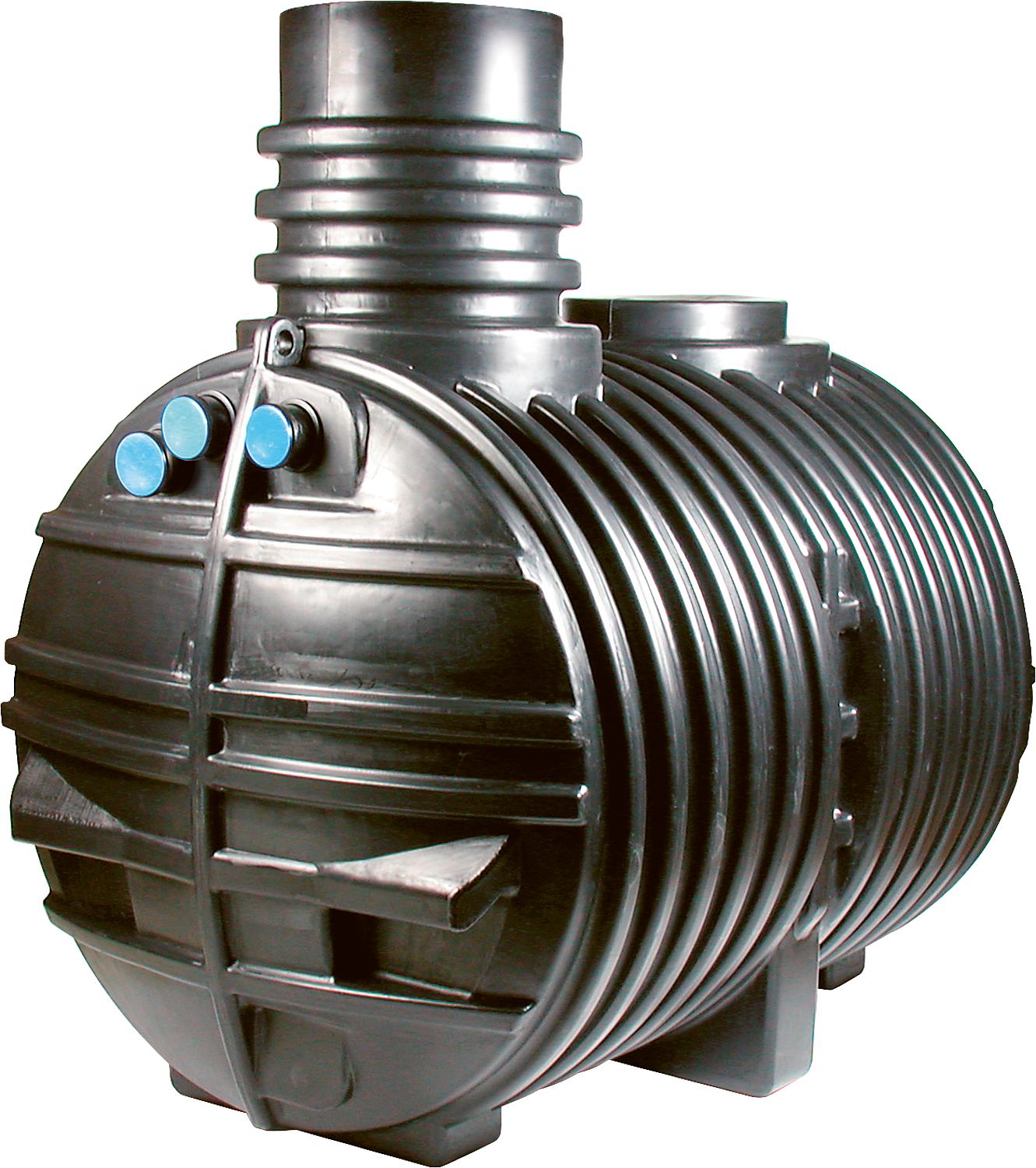

• Robust plastic cisterns with molded-on dome shaft
• A telescopic segment with a plastic cover is available for shaft construction.
• 3300, 5000 or 7000 liters, expandable by simply connecting several cisterns
• The MAXIMA cisterns are pre-assembled with a changeover filter/PURAIN (including integrated backflow preventer/small animal protection and overflow skimmer) as well as the inlet calming device and the siphon.
• The BASIS cisterns are equipped with three DN 100 connections for inlet, overflow and supply, including lip seals.
• Technical data:
• Material: PE
• Connection: DN 100
• Maximum load: Class A – walkable
• Car-accessible telescopic dome (93 111 98) only for the ET-7000 cisterns
• No returns after ordering
• Delivery without telescopic segment and shaft cover
• Not approved for above-ground installation
• Gross volume: approx. 5000 l
• Width: 1710 mm
• Length: 2458 mm
• Height of the tank segment: 1810 mm
• Tank shoulder height: 1710 mm
• Inlet depth/supply: 1505 mm
• Drainage depth: 1420 mm
• Weight: 195 kg
• Material: PE
• Max. soil cover of the tank shoulder: 979 mm
• Inlet, supply lip seal: DN 100
• Drain lip seal: DN 100
• A suitable dome shaft (order no. 93 964 01) can be ordered separately.
• 5000 l tanks are supplied with a loading platform. Surcharge for delivery with loading platform: €100
| Brand | INTEWA |
|---|---|
| Manufacturer part number | 110065 |
| Unit price | CHF/piece |
| Type | ET-5000 BASIC |
