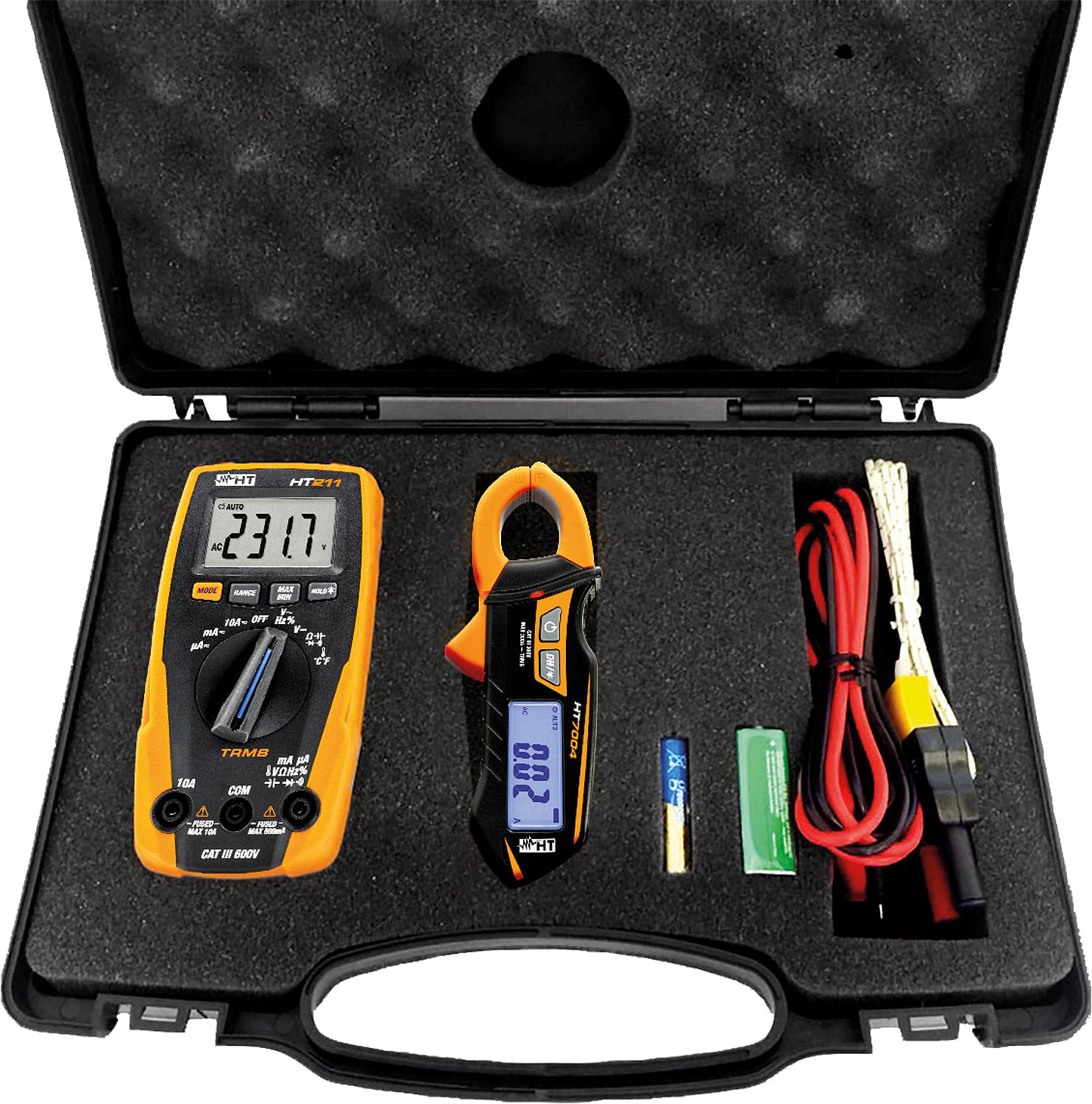

Measuring instrument set HT e-KIT Multimeter HT211 + Current clamp HT7004

Digital multimeter HT 211

• Display: Backlit LCD
• Display range: 4000
• Voltage range AC: 0.1 mV 600 V
• DC voltage range: 0.1 mV to 600 V
• Current measuring range AC: 0.1 µA 10 A
• Current measurement range DC: 0.1 µA to 10 A
• Resistance measurement range: 0.1 Ω to 40 MΩ
• Continuity/Diode: Yes
• Frequency measurement range: 1 mHz - 10 MHz
• Capacitance: 0.01 nF 100 µF
• Temperature: 20°C + 760°C
• Memory function: Yes
• Measuring point lighting: No
• Overvoltage category: CAT III 600 V
• Dimensions (L x W x D): 138 x 68 x 37 mm
• Protection class:
• Weight: 210 g
• Scope of delivery:
• Battery: 1 x 9V block (Order No.: 62 079 50)

Current clamp HT 7004

• Display: Backlit LCD
• Display range: 4000
• AC voltage range: No
• DC voltage range: No
• Current measuring range AC: 0.01 A to 300 A
• DC current measurement range: No
• Resistance measurement range: No
• Continuity/Diode: No
• Frequency measurement range: No
• Capacity: No
• Temperature: No
• Memory function: Yes
• Measuring point lighting: No
• Maximum jaw opening: 20 mm
• Overvoltage category: CAT III 300 V
• Dimensions (L x W x D): 155 x 60 x 25 mm
• Protection class:
• Weight: 140 g
• Scope of delivery:
• Battery: 2 x AAA batteries (Order No.: 62 079 46)
• 1 x measuring leads
• 1 x temperature sensor type K
• 1 x transport case

• True RMS measurement method for precise measurement results
