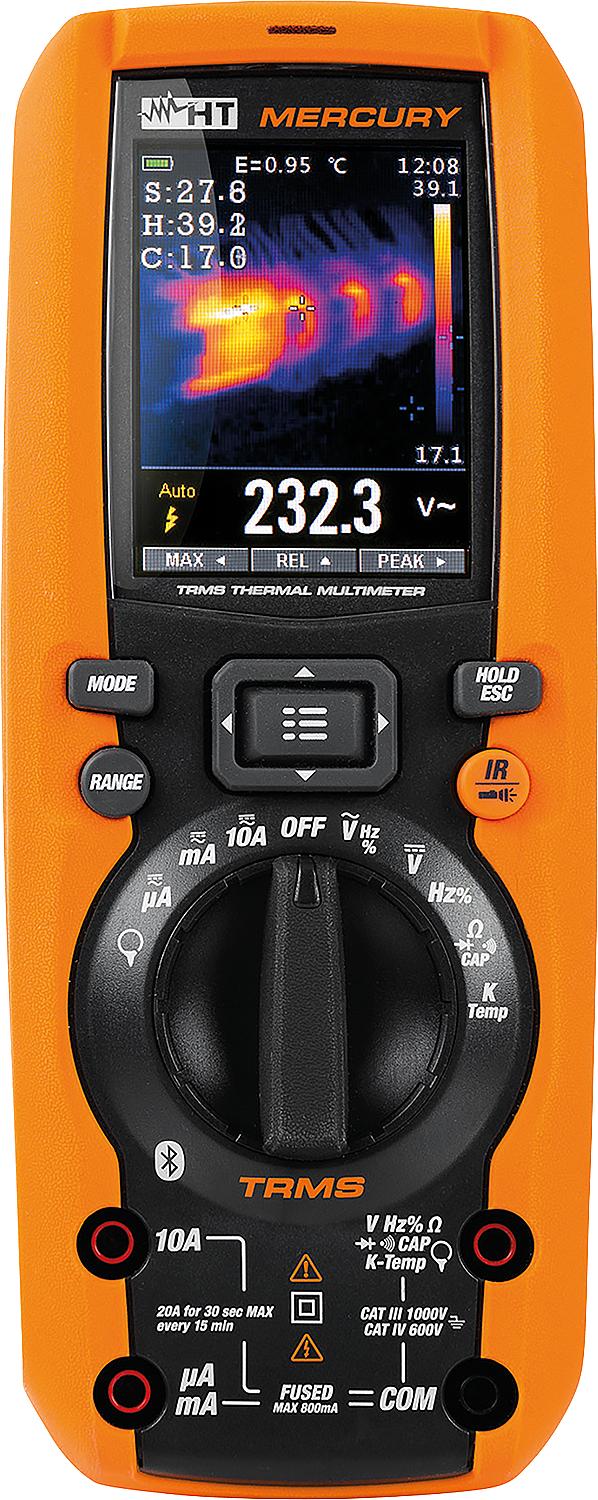

Multimeter HT Mercury CAT III, 1000V with thermal imaging camera

• Protection rating: IP65
• Display: Backlit TFT
• Display area: 6000 px
• Voltage range AC: 1 mV - 1000 V
• DC voltage range: 0.1 mV to 1000 V
• Current measuring range AC: 0.1 µA 10 A
• Current measurement range DC: 0.1 µA to 10 A
• Resistance measurement range: 0.1 Ω to 60 MΩ
• Continuity/Diode: Yes
• Frequency measurement range: 0.01 Hz to 10 MHz
• Capacitance: 0.01 nF to 6 mF
• Temperature: 40°C to 1000°C
• Memory function: Yes
• Measuring point lighting: Yes
• Overvoltage category: CAT III 1000 V / CAT IV 600 V
• Dimensions (L x W x D): 185 x 85 x 55 mm
• Weight: 555 g

Technical specifications of the thermal imaging camera:

• Resolution (pxl): 80 x 80, 34 µm
• Temperature resolution: < 0.1°C / 30°C
• Temperature measuring range: 20°C to 260°C
• Field of view (FOV) / Lens: 21° x 21° / 7.5 mm
• Focus: Automatic
• Color palettes: 4
• Scope of delivery:
• 1 x battery and charging adapter
• 2 x test leads with 4 mm test probe
• 1 x MicroSD card 4 GB
• 1 x protective bag

• With thermal imaging camera

• True RMS measurement method for precise measurement results
