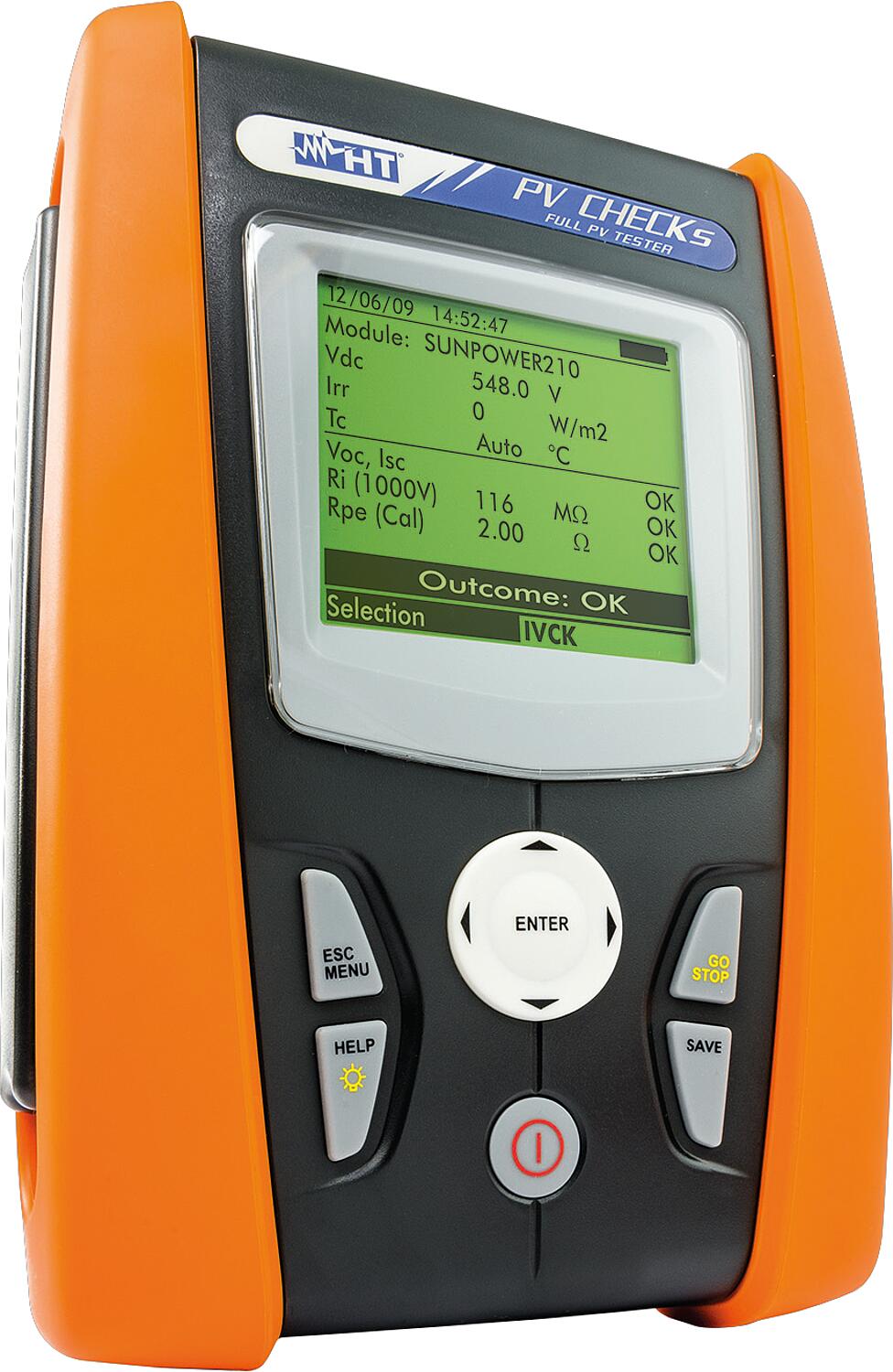

PV installation tester HT PV-Checks 1009501

PV installation tester HT PV-Checks 1009501

Bewertungen
CHF 1,552.50
CHF 1,552.50
% Sold out
Taxes included.

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

  • Economy (kostengünstig) wird berechnet
  • Express (Express-Lieferung) wird berechnet
  • Priority (schneller Standard) wird berechnet
Manufacturer:
Order No.:
Availability:
HT Instruments
62 157 46
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • For all required electrical safety tests according to VDE 012623 (EN 62446) parts 1, 2, 4 and IEC/EN 62446, VDE 012623

  • Measurement functions:
  • Insulation resistance measurement 250/500/1000V DC, 0.019Ω 1999Ω
  • Continuity test / Low resistance measurement Rpe 0.00Ω 199Ω
  • Open circuit voltage measurement Uoc up to 1000 V DC
  • Short-circuit current measurement Isc up to 0.1–15 A DC
  • DC voltage measurement, 2.0 999V
  • Current measurement with current clamp HT4004
  • Power measurement, 0.999 W
  • Riso single measurement + or against earth
  • Features:
  • Automatic test sequence
  • automatic indication of voltage polarity
  • Data logger function
  • Measurement memory for 999 measurements
  • Measurement interval selectable from 5 seconds to 60 minutes
  • USB interface
  • Overvoltage category CAT III 300 V CAT 1000 V
  • Dimensions (L x W x D) mm: 235 x 165 x 75
  • Weight: 1200g
  • Scope of delivery:
  • Batteries: 6 x AA (Order No. 62 079 47)
  • PVCHECKs incl. 1 x HT4004 DC current transformer
  • Test lead set with 4 alligator clips
  • MC3 & MC4 connector adapter
  • TOPVIEW evaluation software
  • USB cable
  • Manual and calibration protocol ISO 9000
  • Protective case
Brand HT Instruments
Manufacturer part number 1009501
Unit price CHF/piece
