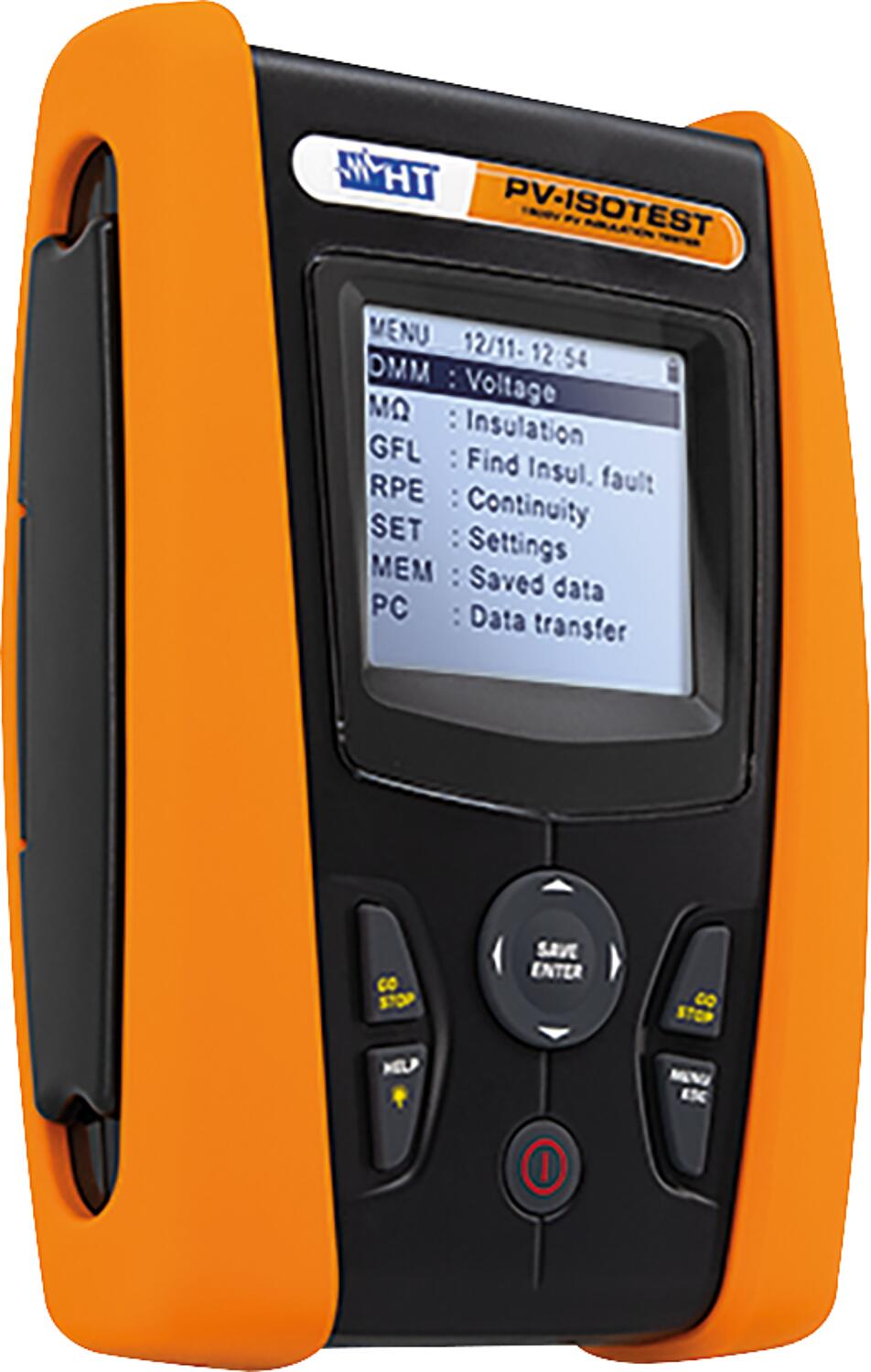

- Determines the insulation resistance of a single module, a string or even an entire PV array with a test voltage of up to 1,500 V DC according to EN 62446 (VDE012623)
- Measurement functions:
- Insulation measurement up to 1,500 V DC, even on live systems.
- Locating the insulation fault on a PV string
- Low-resistance measurement (protective conductor) with a test current > 200 mA
- Measurement of polarization index (PI) and dielectric absorption ratio (DAR)
- Measurement of AC voltage components in the PV string
- Features:
- Power measurement, 0.999 W
- Riso single measurement + or against earth
- Features:
- Measurement memory for 999 measurements
- Multimeter function, displays DC and RMS voltage
- RPEFuntion, immediate continuity test (Iok/No) with a test current, >200mA
- USB interface
- Measurement interval selectable from 5 seconds to 60 minutes
- USB interface
- Overvoltage category CAT III 1000 V AC CAT III 1500 V DC
- Dimensions (L x W x D) mm: 235 x 165 x 75
- Weight: 1200g
- Scope of delivery:
- Batteries: 6 x AA (Order No. 62 079 47)
- PVISOTEST
- 4 test leads with alligator clips
- 2 MC4 connection adapters
- TOPVIEW evaluation software
- USB cable
- Manual and calibration protocol ISO 9000
- Protective case
| Brand | HT Instruments |
|---|---|
| Manufacturer part number | 1010990 |
| Unit price | CHF/piece |
