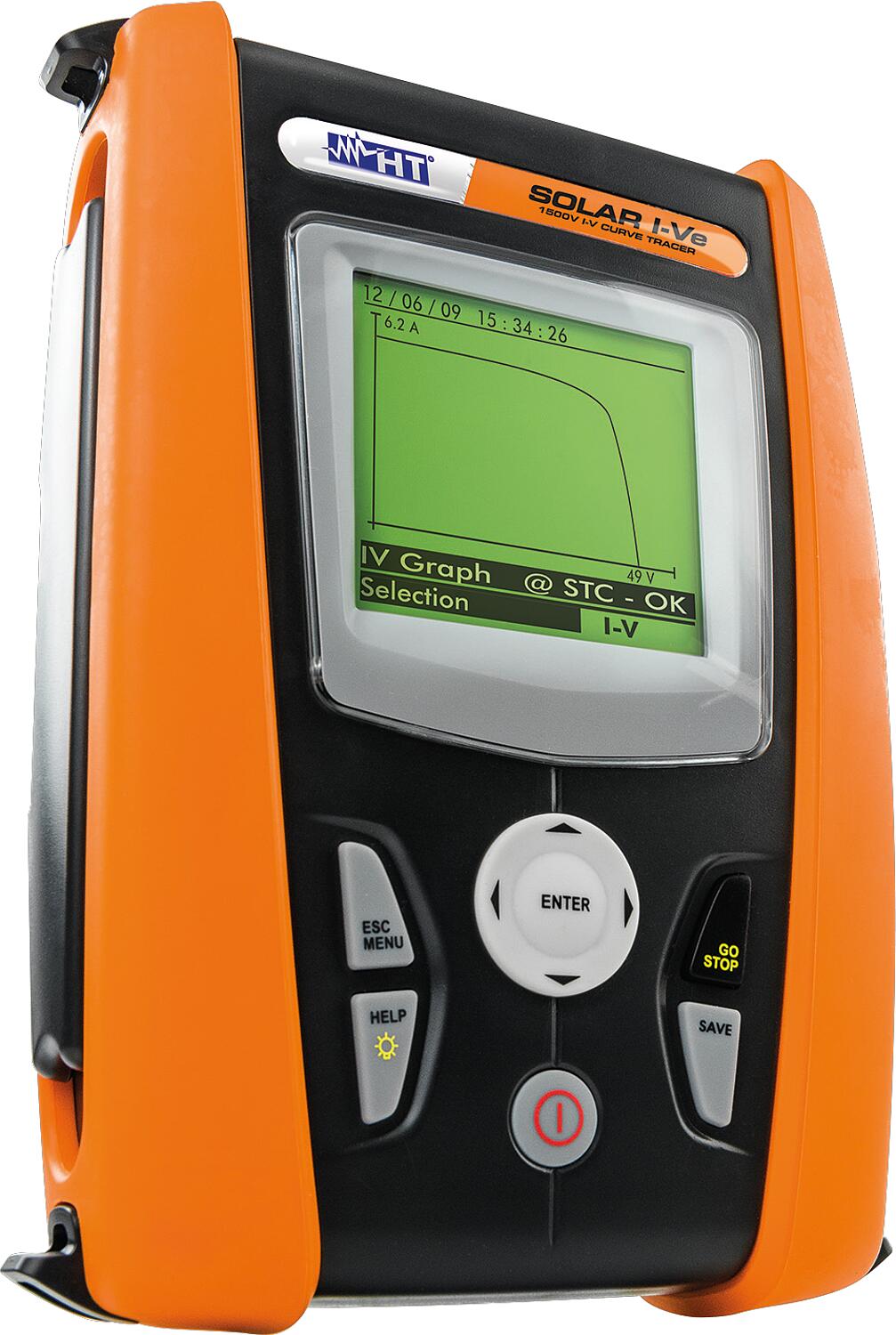

PV measuring device HT Solar I-VE 1008685

Name: PV measuring device HT Solar I-VE 1008685
Brand: HT Instruments
SKU: 62 157 48
Price: 5086.80 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 5,086.80

% Sold out

Taxes included.

Quantity

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

Manufacturer:

Order No.:

Availability:

HT Instruments

62 157 48

sofort lieferbar

Security policy

Delivery terms

Return policy

For efficiency and performance analysis of single-phase PV systems and verification of the technical data of a PV module according to the manufacturer's data sheet in accordance with EN 60891

Function PV module test:
Peak power Pmax (at STC) and the currently measured power
Short-circuit current Isc and open-circuit voltage Uoc
Current Impp and voltage Umpp
Fill factor FF in %
Power measurement, 0.999 W
Graphical representation of the IU and PWR characteristic curves for OPC and STC
Overall result of the examination
Function of PV system test:
Voltage measurement in AC & DC, 15 1499.9 V DC, 50265V AC
Current measurement 40mAh 1100A IDC, 10mA 1200A IAC
Power in AC and DC (single-phase systems only) at 100 A, 1 W: 9999 kW
Inverter and generator efficiency
Temperature in (W/m2), 20° 100°C
Solar irradiance in (W/m2), 1.0MV 100 mV
Scope of delivery:
Batteries: 6 x AA (Order No. 62 079 47)
Dual Irradiance Sensor HT304N
External data logger SOLAR02
PT300N temperature sensor
Inclinometer M304
Four-wire measuring cable
MC3 & MC4 connector adapter
AC current transformer 200 A AC
DC current transformer 10 A / 100 A AC
TOPVIEW evaluation software
USB cable
Data storage for 200 measurement curves
Manual and calibration protocol ISO 9000
Protective case
