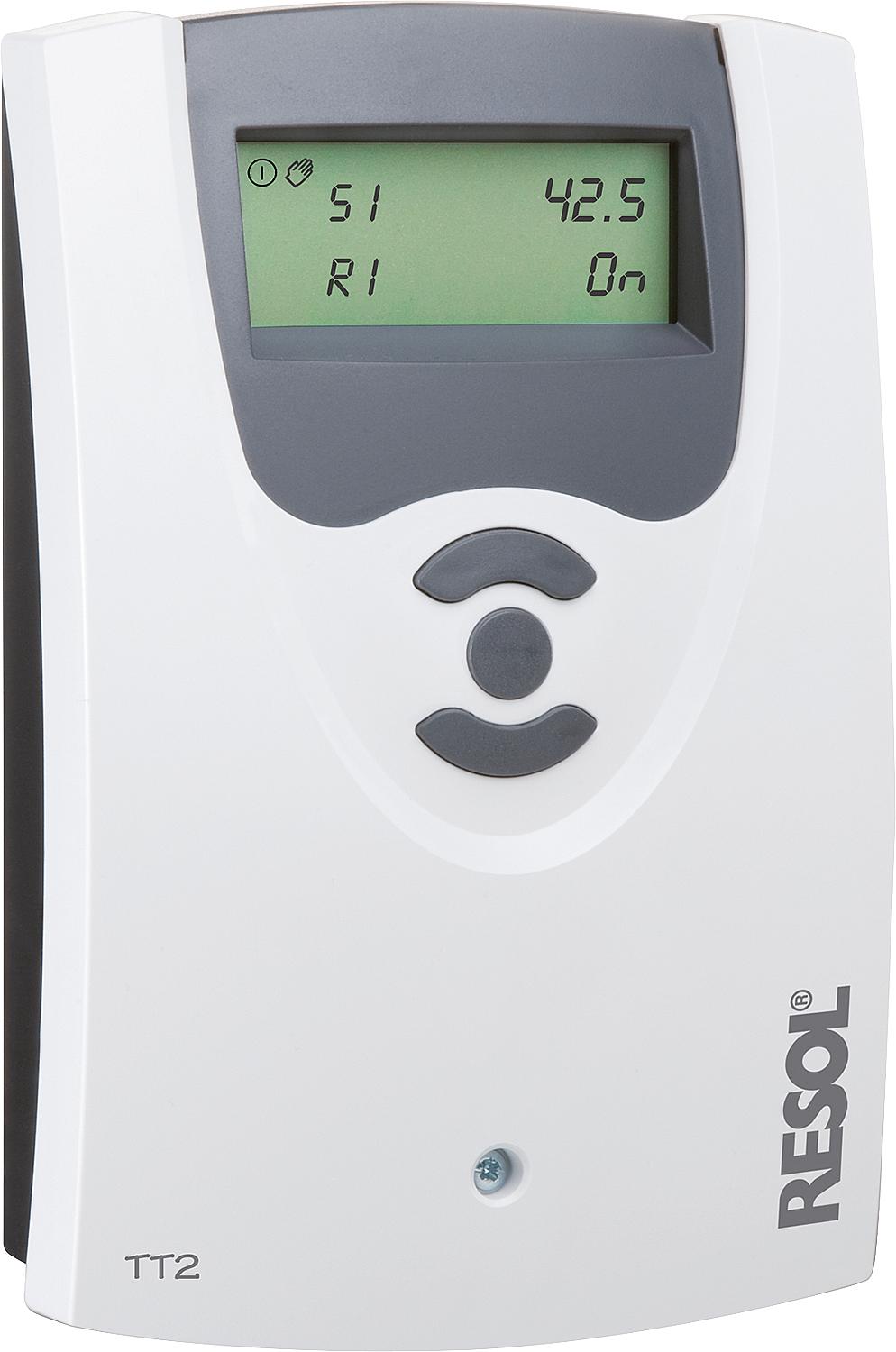

Thermostat Resol TT2 for electric auxiliary heating, complete including sensor

• With 2 inputs and 2 outputs

• Equipped with two high-load relays to which an electric heating element with up to 3.6 kW (230 V/AC) can be connected.
• Controls the time and temperature-controlled reheating of a hot water storage tank
• Rapid heating function
• Includes 1x Pt1000 sensor (FKP6)

Technical data:

• Inputs: 1 Pt1000 temperature sensor, 1 input for RCTT remote control
• Outputs: 2 high-load relays for electric heating element
• Switching capacity: 16 (3) A 240 V~ (high-load relay)
• Operating voltage: 100 … 240 V~ (50 … 60 Hz)
• Protection class: IP 20 / EN 60529
• Ambient temperature: 0 ... 40 °C
• Setting range: 0 ... +95 °C
