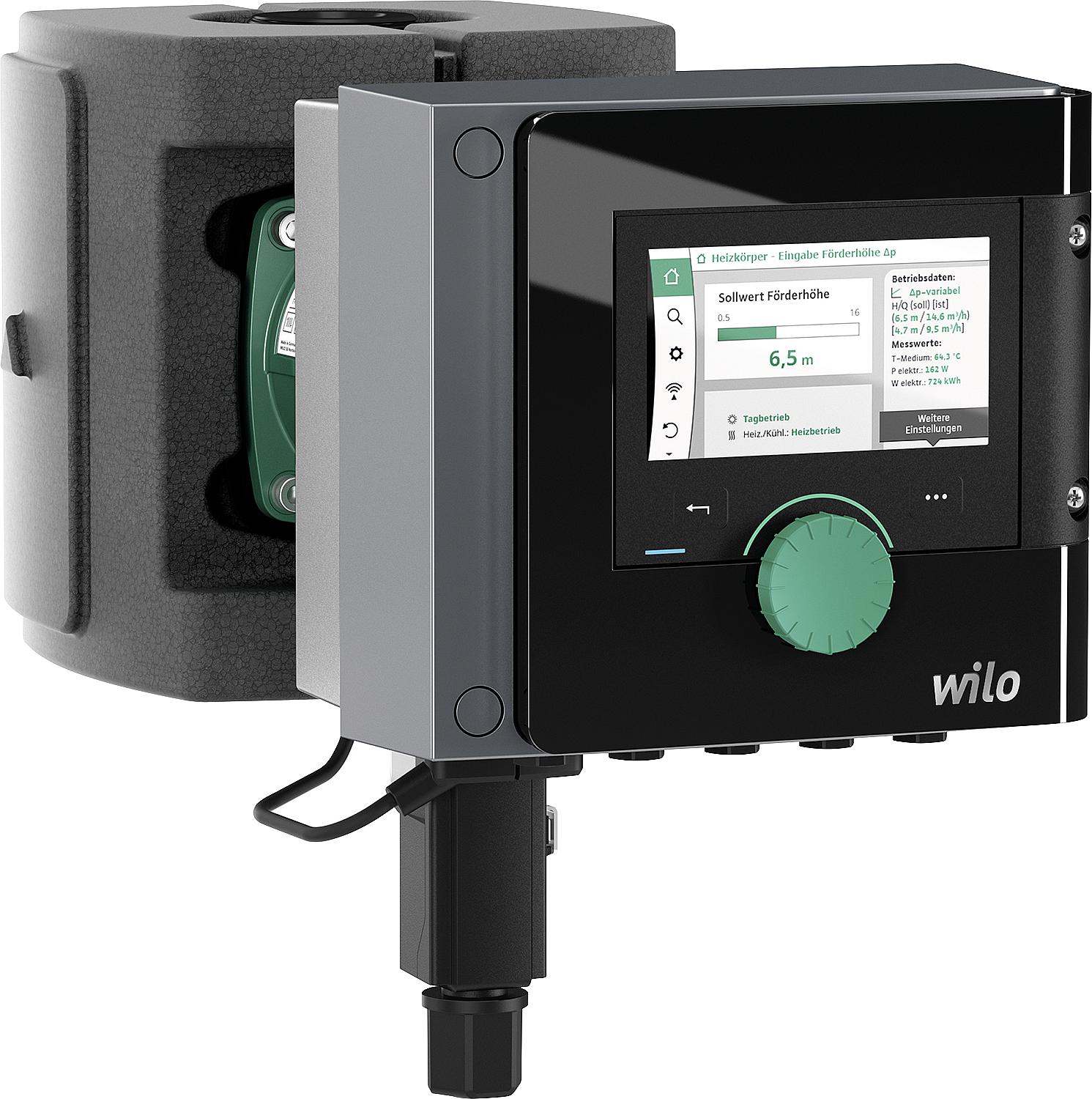

Stratos MAXO R7 25/0.5-10 (DE) circulation pump

• For use in heating, air conditioning, cooling and industrial plants

• Without integrated sensor
• Bluetooth interface for wireless data exchange
• The display shows the current flow rate in m³/h, power consumption [W], and cumulative energy consumption [kWh].
• Automatic venting function
• Automatic unblocking function
• Dynamic Adapt plus
• Proportional pressure control
• Constant pressure control
• MultiFlow Adaptation
• Reset function
• Key lock
• QLimit max. to limit the maximum volume flow
• QLimit min. for limiting the minimum volume flow
• No Flow Stop (Zero Flow Shutdown)
• Automatic night setback
• Worst point control (Δpc control with external actual value sensor)
• Variable slope of the Δpv characteristic curve
• Compatible with WiloSmart Balance App
• Including thermal insulation shell

Technical data:

• Operating voltage: 230V/5060Hz
• Media temperature: 10°C 110°C
• Ambient temperature: 10°C - 40°C
• Protection class: IPX4D
• Housing material: Cast iron

• Installation length: 180 mm
• Maximum operating pressure: 10 bar
