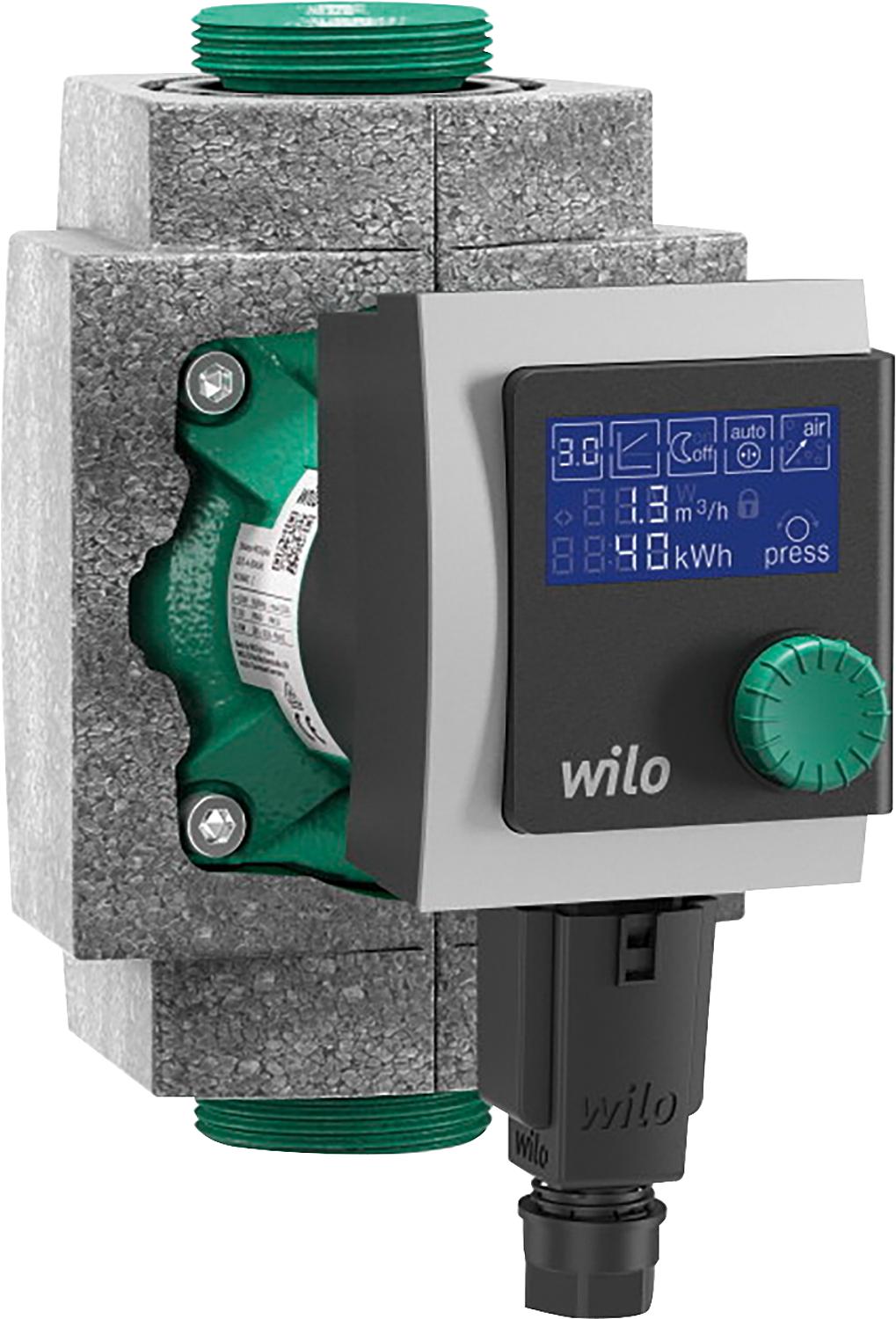

For use in heating, air conditioning and industrial plants
Compatible with Wilo-Smart Balance App
The Wilo Smart Balance app allows for easy hydraulic balancing. The complete report can be exported as a PDF document for submission to the Federal Office for Economic Affairs and Export Control (BAFA) for billing purposes.
• Display shows: current flow rate in m³/h, power consumption in W, and the total energy consumption [kWh]
• Automatic venting function
• Dynamic Adapt
• Automatic lowering operation (autopilot)
• Automatic unblocking function
• Reset function
• Key lock
• Proportional pressure control
• Constant pressure control
• Includes thermal insulation shell
• Supplied without screws
Technical data:
• Operating voltage: 230V/50-60Hz
• Maximum operating pressure: 10 bar
• Media temperature: +2 to +110°C
• Ambient temperature: 0 to +60°C
• Protection rating: IPX4D
• Housing material: Grey cast iron (KTL-coated)
• Installation length: 180 mm
| Brand | Wilo |
|---|---|
| Power [W] | 3-25 |
| Manufacturer part number | 4216609 |
| Unit price | CHF/piece |
| Nominal size | DN 25 (1") |
| EEI ≤ | ≤0.16 |
| Type | 25/1-4 |
| External thread | DN 40 (1 1/2") |
| EAN | 4048482826325 |
