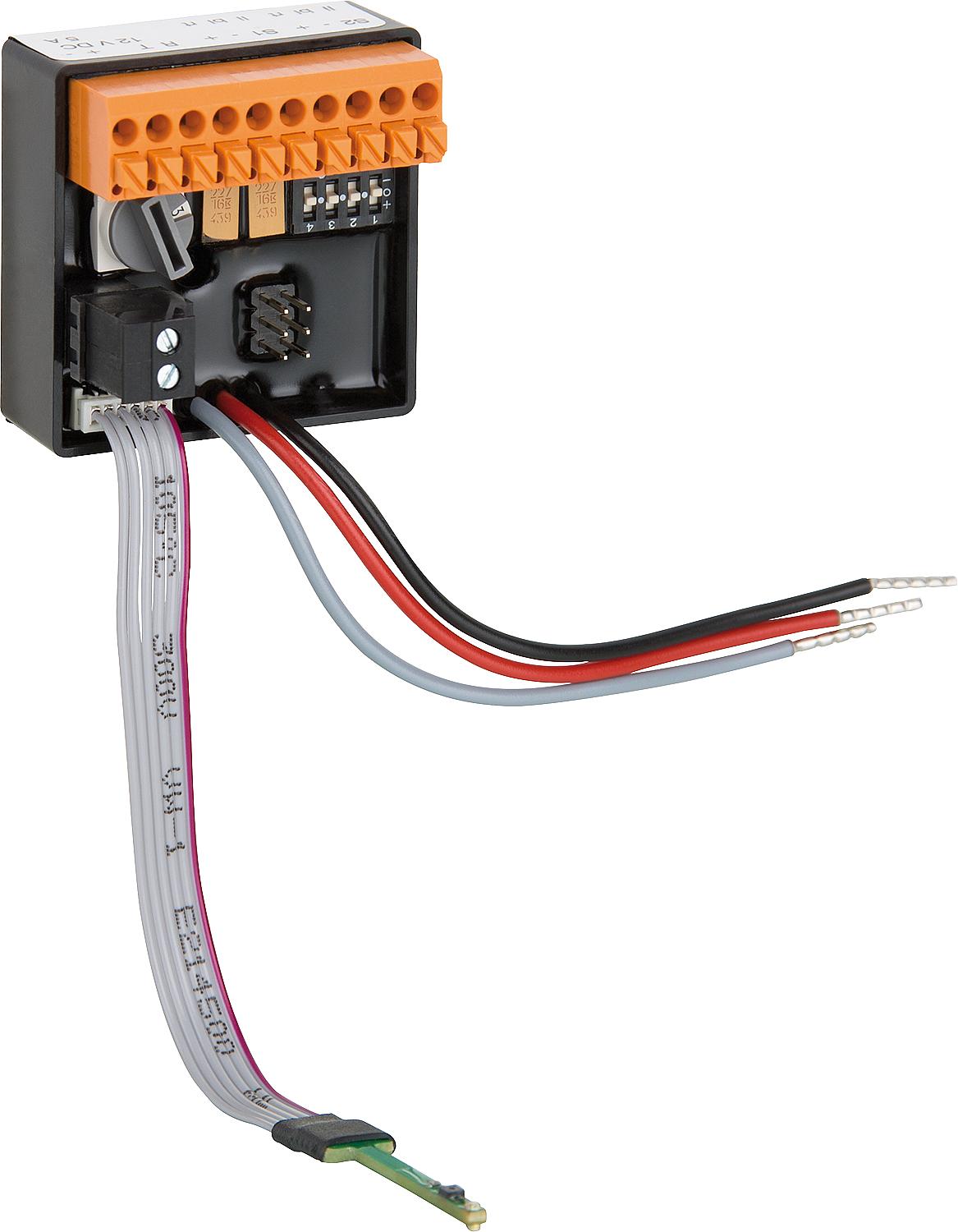

Universal controller 5/UNI-FT with humidity, temperature and overrun module, for e go and e²

• Control for switching the various operating modes of the blower units e², e²60 and ego
• Integrated humidity and temperature sensor
• Summer mode: Night cooling without heat recovery
• Filter change indicator
Technical data:
• Operating voltage: 12 V DC
• Operating voltage range: 0-10 V
• Protection class: IP 22
• Dimensions:
- Control unit (W x H x D): 25.6 x 42 x 42 mm
- Control element (W x H x D): 88 x 88 x 11 mm
• Can be installed in a deep flush-mounted box (90 mm)

• Manual control of operating modes via series switches
• Run-on timer and interval control possible (setting via DIP switch)
Required accessories:
• Power supply unit: Order no. 98 028 87
• Switch: Order No. 98 028 86
