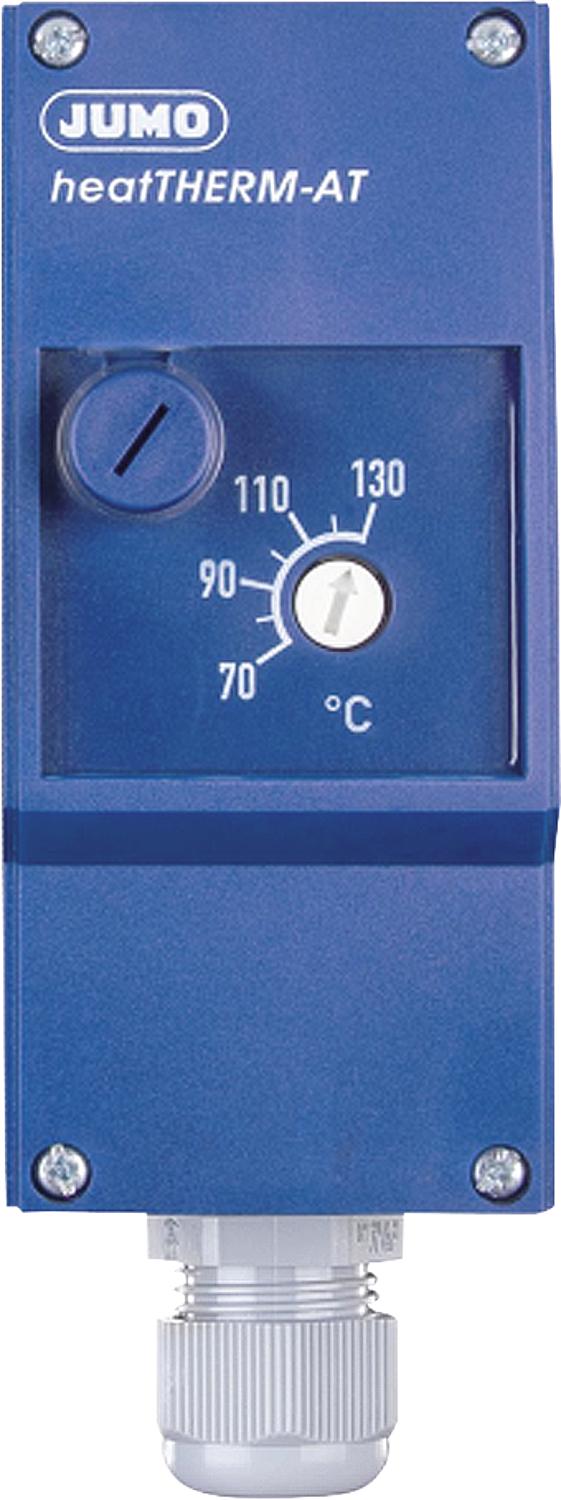

Surface-mounted thermostat type 603070/0070 +70...130°C Immersion tube 8 x 100 mm

• These thermostats work on the principle of fluid expansion.
• When the set temperature is reached, a snap-action switch is activated via the translation mechanism.
• tested according to DIN 14 597 (replacement for DIN 3440)
• Capillary break protection for STW and STB: If the measuring system is destroyed, the circuit opens permanently.
• Depending on the design, the switching point is set either from the outside (TR) or from the inside (TW/STW/STB).
• In the internal setting, the switching value is visible through a control window.
• The thermostats are either supplied with a protective tube or as a pipe-mounted thermostat with a pipe clamp.
• Both versions contain a coiled, extendable 2000mm remote cable inside the housing.
• PushIn® connection technology – 50% less installation time
• individual limitation of the control range
• Stable switching point position through ambient temperature compensation
• Two designs in one device: thermostat with rigid shaft,
• Remote line thermostat (FL: 2000 mm, coiled inside the housing)

Technical data:

• Protection class: IP 54
• Switching capacity 16 A, 230 V, at least 250,000 switching cycles TR/TW
• Maximum switching point deviation ± 5% over the entire service life

• Safety temperature limiter (STB), adjustment from inside (control of the switching value through a window in the housing cover), capillary break protection, manual release
• Control range: 70...130°C
• Switching differential: approx. 10 K
• Connection: Protective pipe DN 15 (G1/2") 8 x 100 mm, nickel-plated brass
• Sensor diameter x length in mm: 6 x 60
