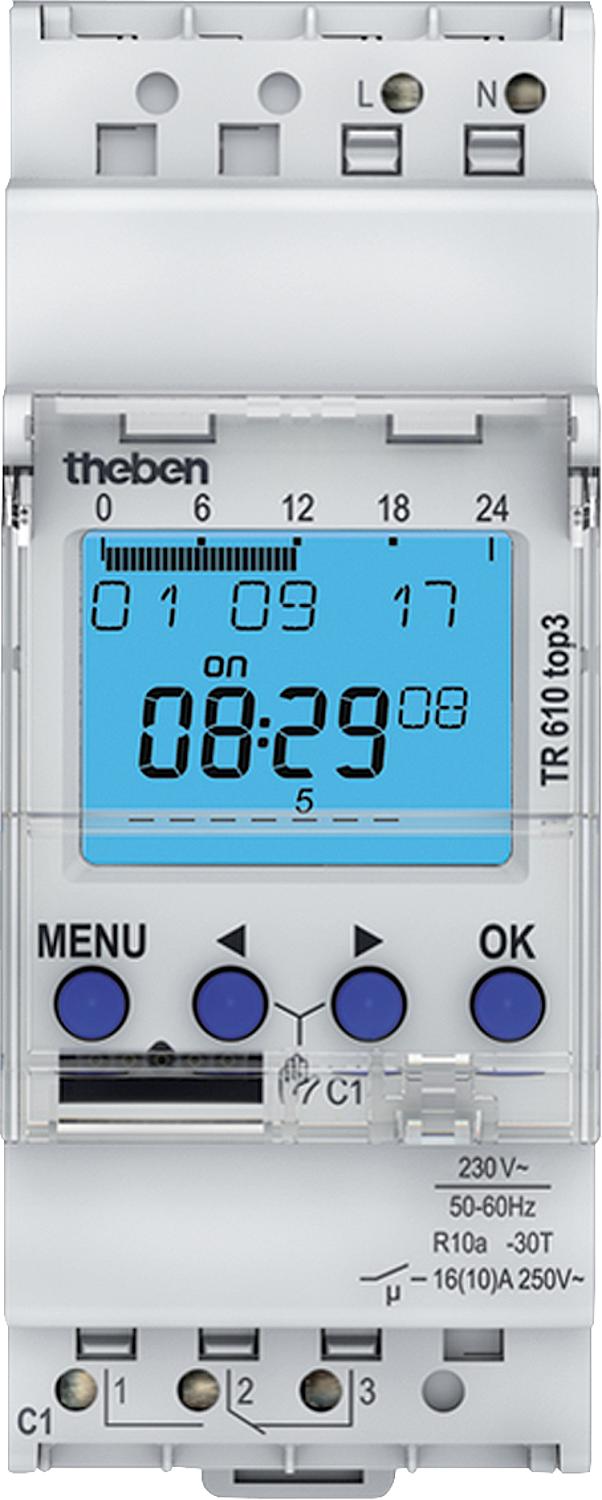

Theben TR 610 top 3 digital timer, 24 hours/7 days

• With text-based user guidance on the display, OBELISK interface and DuoFix plug-in terminals
• Daily and weekly program
• Integrated operating hours counter with reset function and service function for monitoring maintenance intervals with "Service" display, separate for each channel.
• Spring-loaded terminal blocks for 2 conductors, wire or stranded wire each, and program fuse
• Interface for OBELISK top2 memory card (PC programming)
• Holiday program date-controlled
• Automatic summer/winter time correction
• Zero-crossing switching for relay-friendly switching and high lamp loads
• Continuous ON/OFF switch
• App programming possible (only with OBELISK top3)
• Secure transmission via optional Bluetooth Low Energy OBELISK top3
• Maximum tamper protection; the timer program can only be transferred from the app to the watch when the Bluetooth OBELISK top3 is inserted in the watch.
• Switching output: phase-independent (zero-crossing switching) 100% compatible with top2

Technical data:

• Operating voltage: 230–240 V~ / 50 Hz / +10%/–15%
• Rated current: 16 (10) A
• Maximum switching capacity: 16 A, 250 V~
• Fluorescent lamps, not compensated: 2600 VA
• Compact fluorescent lamps: 1100 W
• LED lamp: 600 W
• Memory locations: 56 (EEPROM)
• Power reserve: approx. 10 years with autosleep while fully functional
• Protection class: IP20 according to EN 60 529
