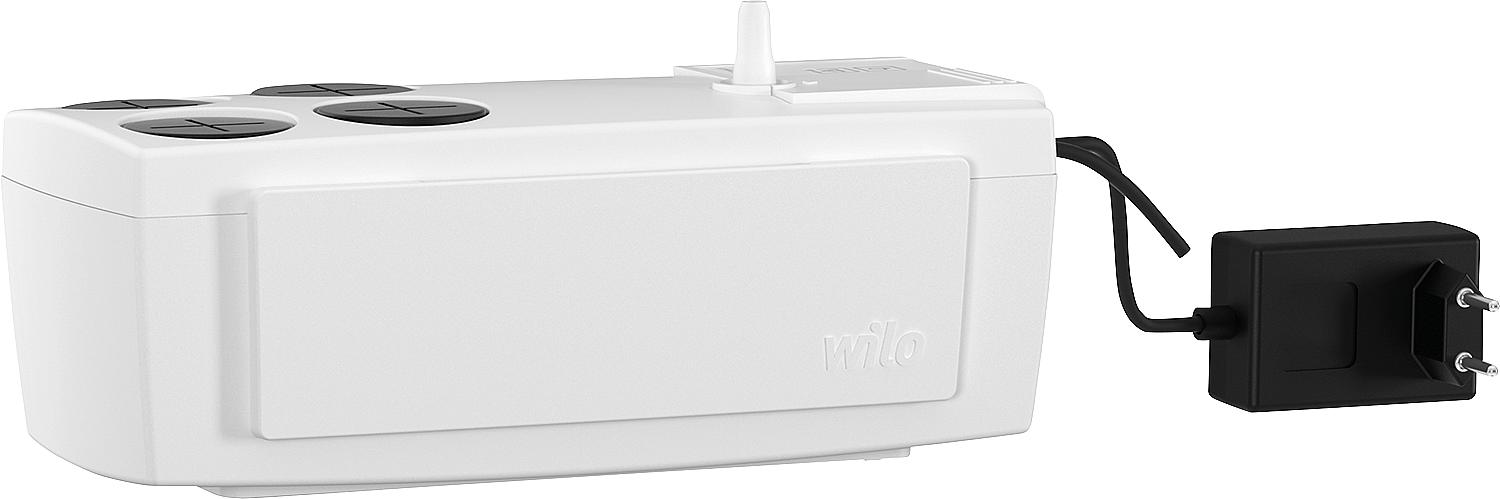

Wilo Plavis 015-C condensate pump

• For draining condensate from oil and gas condensing boilers
• With adjustable inlet and rotating cover
• Granule chamber wall for neutralization
• Quick maintenance thanks to removable maintenance cover and built-in ball backflow preventer
• High operational reliability thanks to built-in visual alarm and alarm contact
• Electrical connection via Schuko plug with 1.5 m cable
• Ready to connect, including 5 m pressure hose ø 8 mm

Technical data:

• Maximum delivery head: 4.4 m
• Maximum flow rate: 320 l/h
• Condensating acid max.: pH > 2.5
• Condensate tray capacity: 1.5 L
• Maximum condensate temperature: 65°C
• Operating voltage: 230 V/ AC
• Power consumption: 20 W
• Protection class: IP 20
• Dimensions (L x W x H): 128 x 275 x 127 mm
• Connection for pressure hose: 8/10 mm
• Inlet connection: 238 mm (adjustable)
