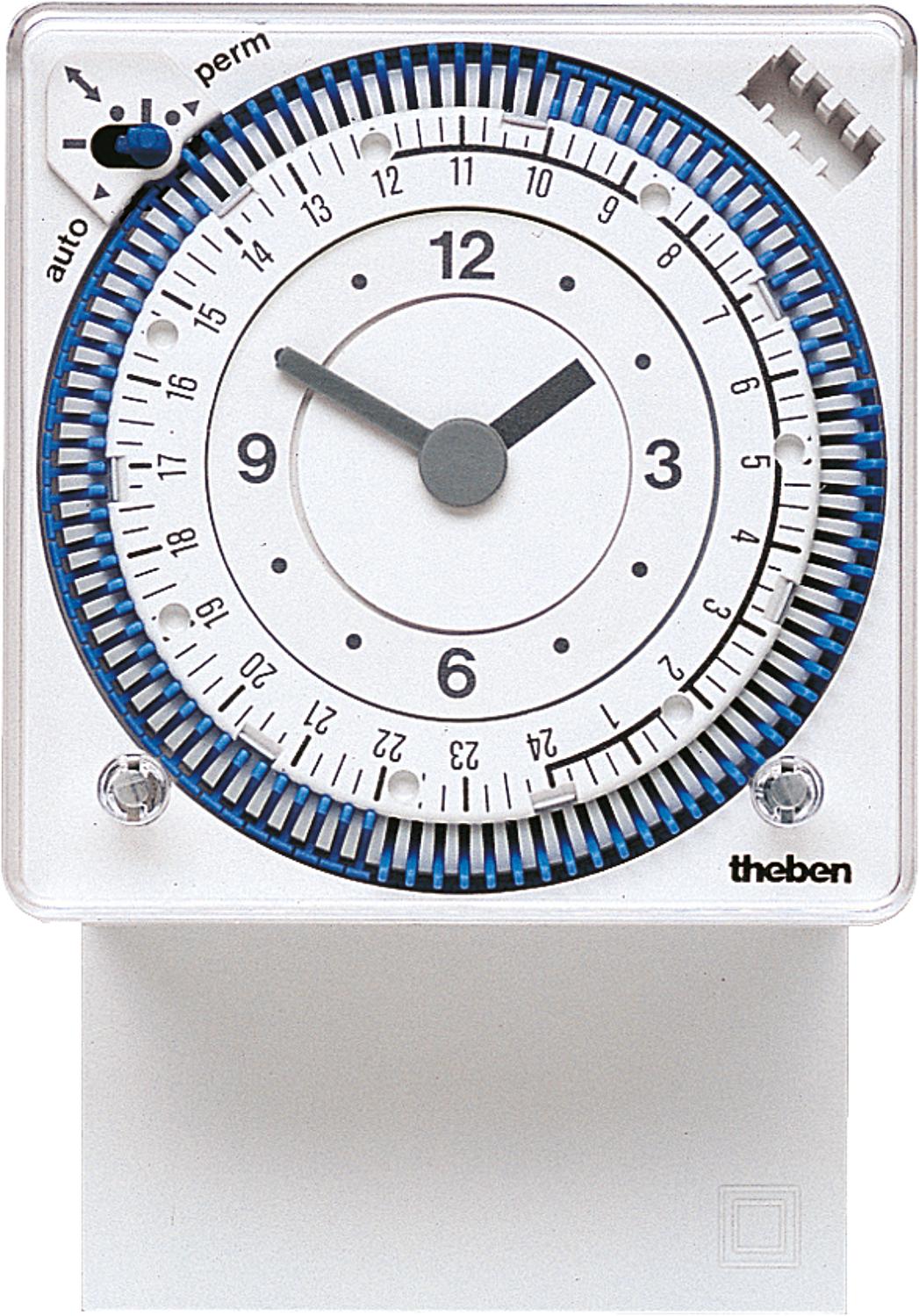

Theben time switch SYN 169 s

• Protection class: IP 20 according to EN 60 529
• Protection class: II according to EN 60 7301 when installed as intended
• 24-hour switching disc with segments of 15-minute switching duration
• Circuit preselection for manual premature switching on or off; the next opposing program command cancels the manual switching again.
• Simplest programming by folding segments, e.g. for the desired switch-on time
• Permanent ON/OFF switch, e.g. for holidays
• Clock hands resettable for summer/winter time adjustment
• Operating voltage: 230 V, +10%/-15%
• Switch disc: 24 h
• Programmable: every 15 minutes
• Switching segments: 96
• Rated current at 250 V: 10 (2) A
• Channels: 1
• Contact: 1 changer
• Switching output: potential-free
• Switching capacity: 10A/250V, 2A/250V
• Permissible ambient temperature: -10°C... +55°C
• Self-consumption: approx. 1 VA
• Housing and insulation material: high-temperature resistant, self-extinguishing thermoplastics

SUL 189 s:

• Drive: quartz-controlled stepper motor
• Frequency: 45–60 Hz
• Accuracy: ≤ ± 1 s/day at 20°C

SYN 169 s:

• Drive: Synchronous motor
• Frequency: 50 Hz
• Accuracy: dependent on mains frequency

• Design:
• Front frame 72 x 72 mm (DIN 43 700)
• Panel mounting with clamp fastening
• Surface mounting with plug-in base and terminal cover
