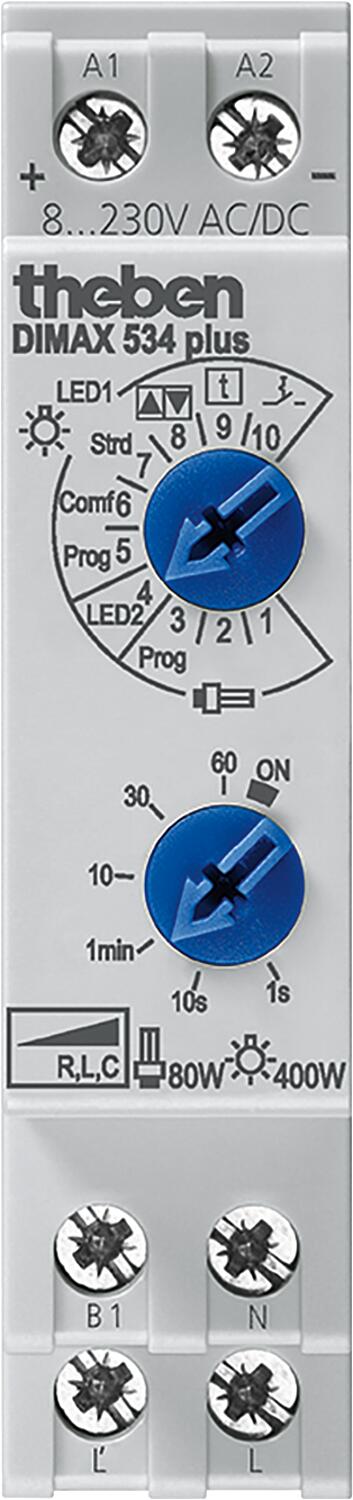

Universal dimmer theben DIMAX 534 plus

• Universal dimmer for R, L and C loads with automatic load detection
• Comfort settings with wake-up and snooze function (also deactivatable), e.g. for children's rooms
• Adjustable dimming speed (for automatic functions)
• Single and double button operation for the simplest possible use
• Up to 3 lighting scenes can be accessed via a separate input.
• Central ON/OFF control for up to 10 dimming channels or lighting scenes for up to 10 devices is possible with a single button.
• Staircase lighting function with dimming function according to DIN 18015 – 2 (retrofittable, long-term function)
• Controllable via push buttons or switches, e.g. for combination with presence detectors or timers.
• Adjustable minimum brightness (required for CFLs and LEDs)
• Multi-voltage input, e.g. for intercom systems
• Low standby power consumption
• Memory function in case of power failure
• Automatic electronic overload and overtemperature shutdown
• Dimming/switching function
• Permanent ON function (test function)
• No minimum load required
• Soft ON and Soft OFF protect the light bulb

Technical data:

• DIN rail mounting
• 1 TE
• Protection rating: IP20
• Operating voltage: 230 V/AC
• Switching capacities:
• Incandescent bulb: 400 W
• Transformers: 300 W
• LED lamp: Phase-cut 400 W
