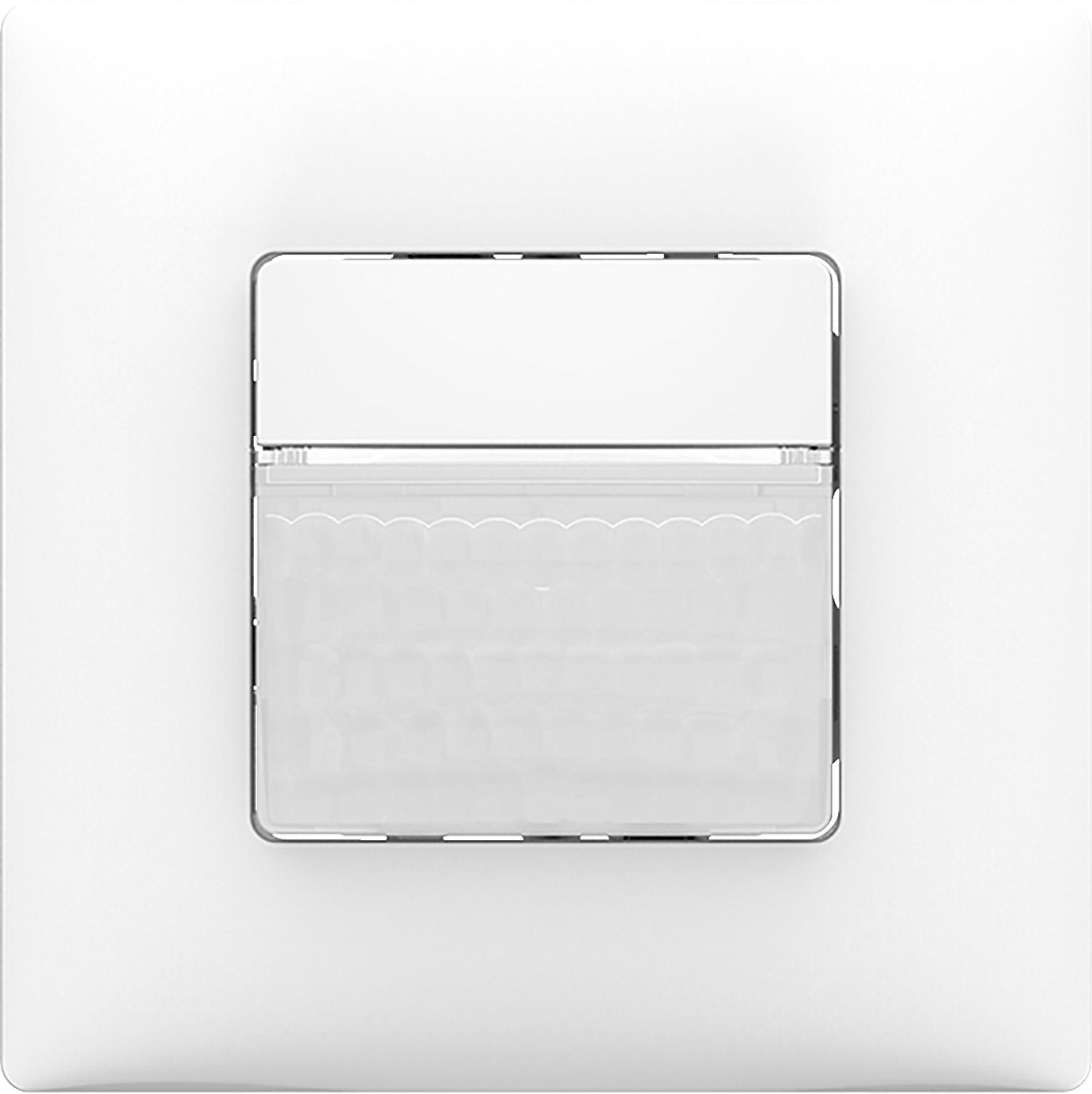

wall-mounted motion detector theben theMura S180-100 UP, white, flush-mounted, frontal = 12x10m

• Passive infrared motion detector for wall mounting in flush-mounted box
• Rectangular detection area
• 1 channel light
• Operation as fully or semi-automatic
• Adjustable brightness level, teach-in function
• Adjustable overrun time
• Staircase lighting function
• Long-term function
• Extended detection range via master/slave circuitry, max. 6 detectors
• Ready for immediate use thanks to factory pre-configuration
• Scope of delivery area limitation
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
• Integrated button (can be deactivated)

Technical data:

• Protection class: IP 20
• Mounting height: 0.8–1.2 m
• Detection area: up to 238 m² (14 x 17 m)
• Operating voltage: 230 V/AC
• Sensitivity range: 5-1000 lux
• Power-on delay:
• Switch-off delay: 10 sec 30 min / pulse
• Switching capacities:
• Incandescent bulb: 2300 W
• Fluorescent lamp: 600 W
• LED lamp: 450 W
