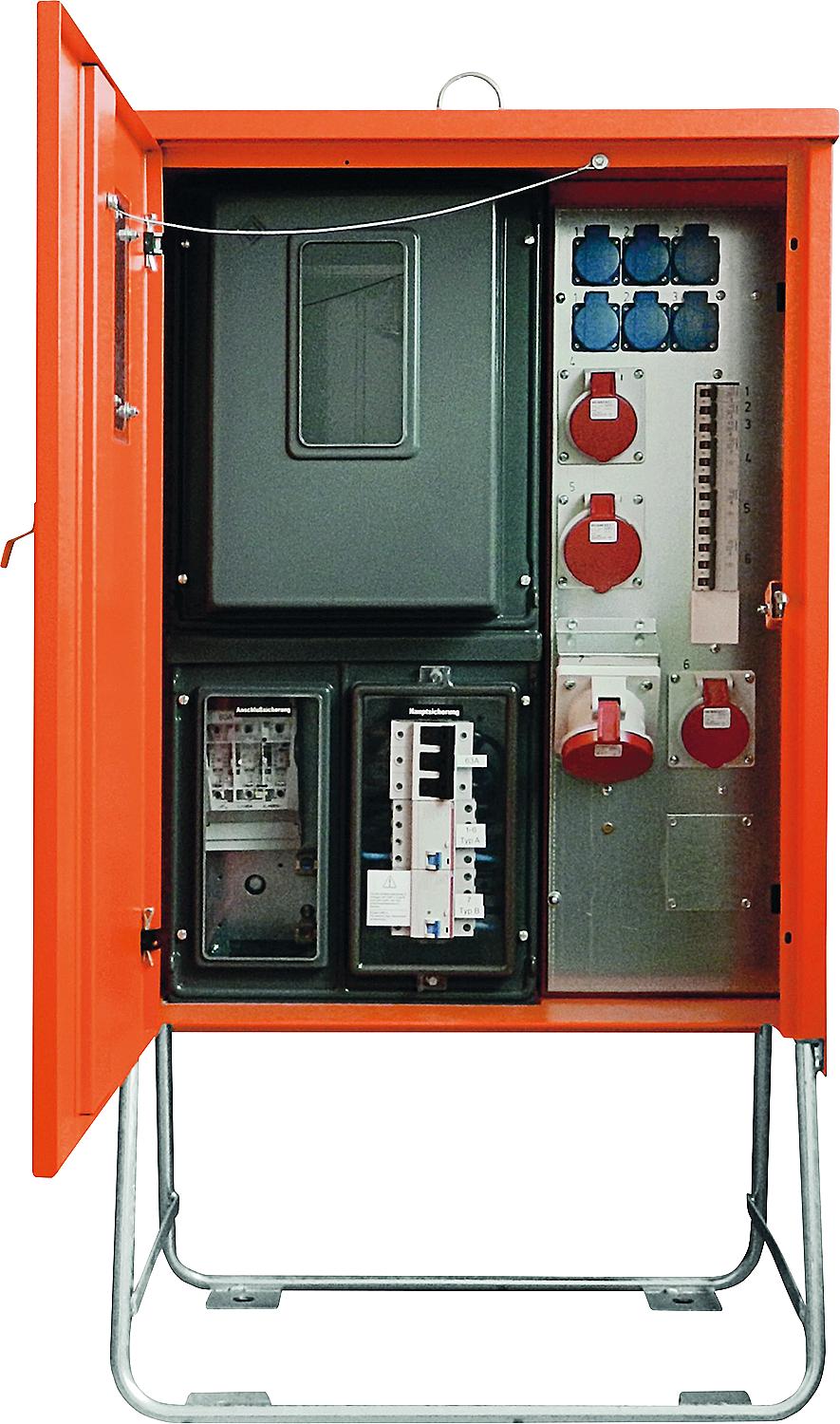

Connection distribution cabinet AV 63.2/211-6 44 kVA, 63A, RCD type B, CEE 2x16A, 1x32A, 1x63A

• Protection rating: All internal components are IP54
• Operating voltage: 230/400 V, 50 Hz
• Housing made of galvanized sheet steel, powder-coated RAL 2004 orange
• Includes base

Components:

• 1 x cable entry M 63 with strain relief
• 1 x connection fuse as NH 00 load break switch (protected with 80 A)
• 1 x meter position according to DIN 43870/2 (without meter)
• 1 x main fuse as load break switch with fuse D02 Neozed E18, 3/63 A (protected with 63 A)
• 1 x residual current circuit breaker (RCCB) 4-pole, 63 A, 300 mA, type B for CEE 63 A socket
• 1 x residual current circuit breaker, 4-pole, 63 A, 30 mA, type B for additional sockets
• 1 x CEE 5-pin, 63 A, 400 V, direct but via residual current circuit breaker
• 1 x CEE 5-pin, 32 A, 400 V, via 1 x LS C32 A, 3-pin
• 2 x CEE 5-pin, 16 A, 400 V, via 2 x LS C16 A, 3-pin
• 6 x Schuko sockets, 16 A, 230 V, via 3 x LS C16 A, 1-pole
• Dimensions (W x H x D): 690 x 920 x 350 mm
• Weight: approx. 52 kg
