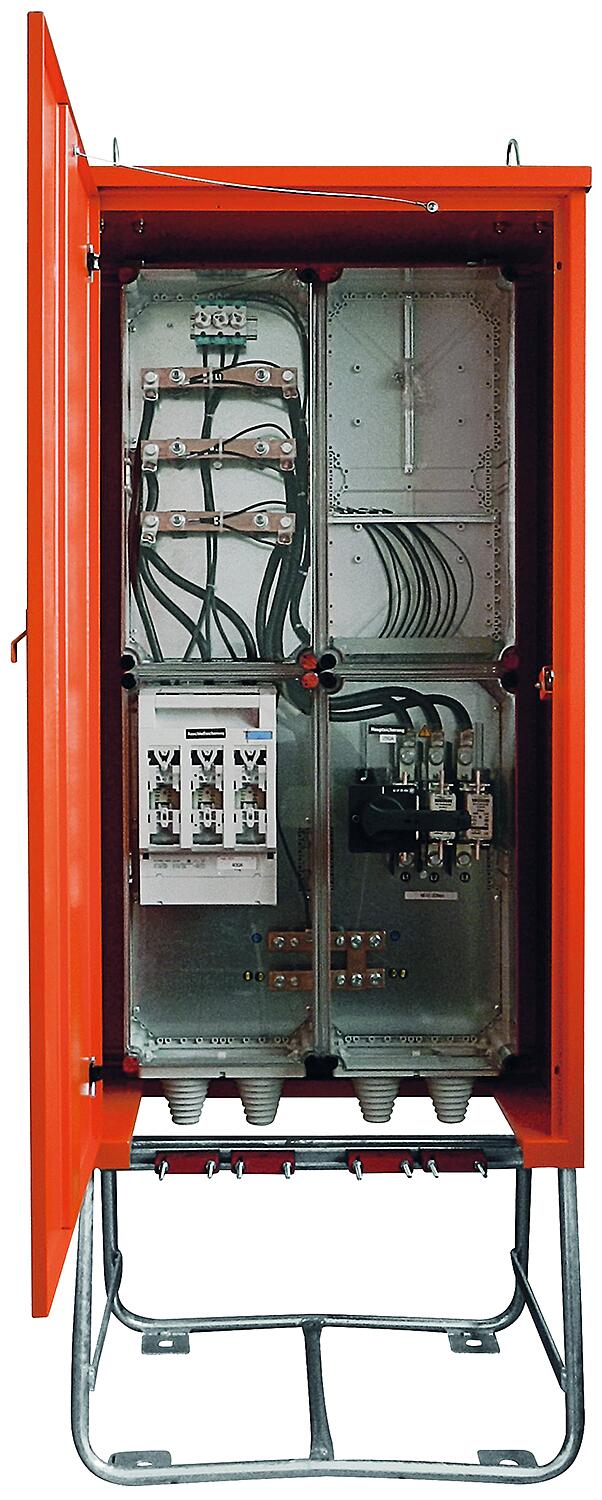

Connection cabinet, type: A 250-A, 173kVA

Bewertungen

| Eine Rezension schreiben

CHF 3,247.75

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Steidele

62 143 55

sofort lieferbar

Security policy

Delivery terms

Return policy

Protection rating: IP54
Operating voltage: 230/400 V, 50 Hz
Housing made of galvanized sheet steel, powder-coated
RAL 2004 orange
With base frame
Components:
2 x 72 mm cable entries with strain reliefs
1 x connection fuse as NH 2 load break switch 3-pole (protected with 400 A)
L1, L2, L3, N+PE/PEN with M 10 bolt connection
1 x Neozed E 14, 3/16 A voltage path fuse (protected with 6 A)
1 x meter space 300 x 600 mm according to DIN 43870/2, without meter
1 x converter panel 300 x 600 mm, including 3 CU rails 30 x 10 mm pre-wired to 6 support insulators, without converter
1 x output as main fuse NH 1 load break switch with fuse 3-pole (protected with 250 A), L1, L2, L3, N+PE/PEN with bolt connection M 10
2 x 72 mm cable outlets with strain reliefs
Power output: 173 kVA
Dimensions (W x H x D): 720 x 1370 x 400 mm
Weight: approx. 104 kg
