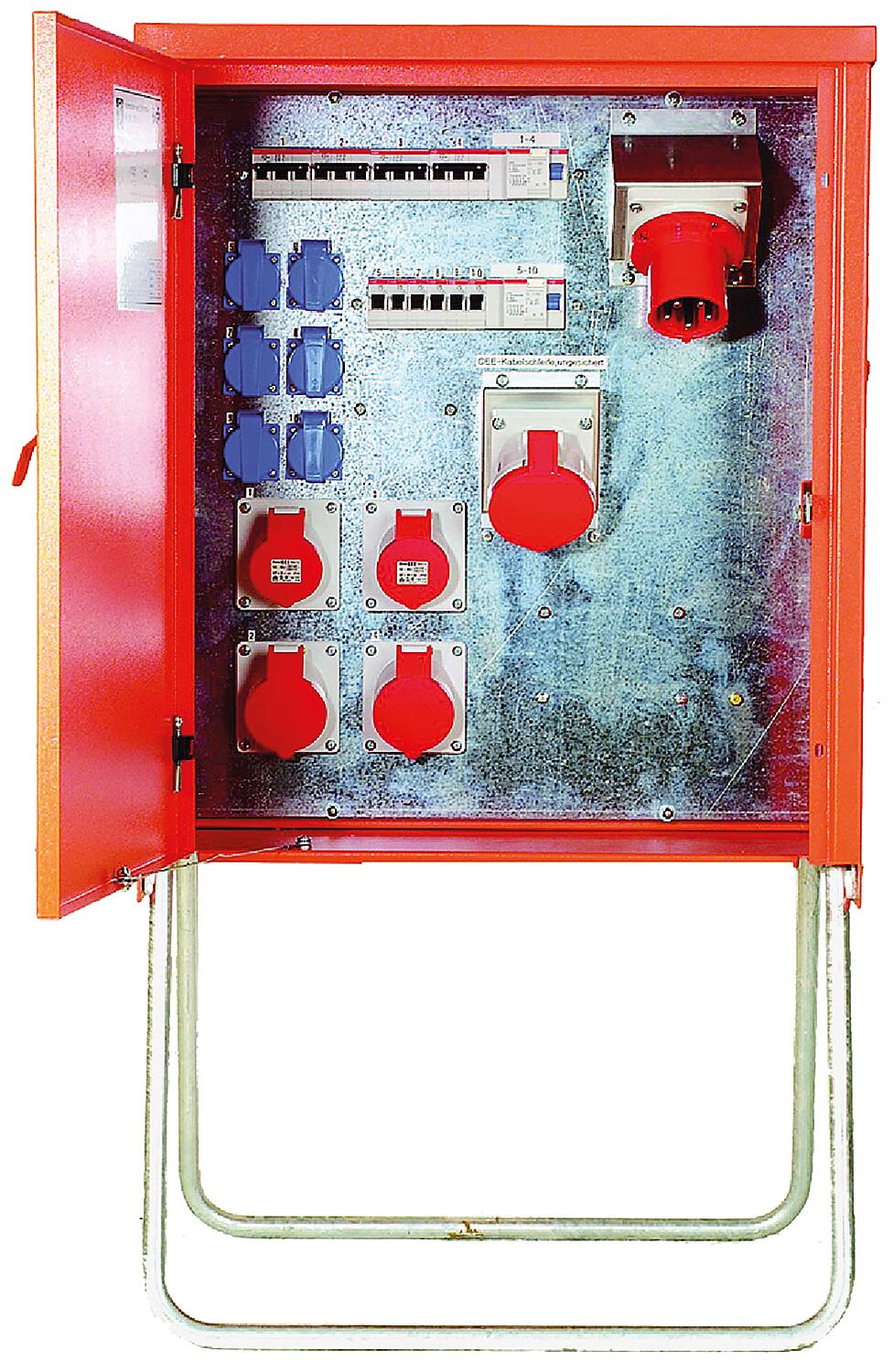

Final distribution board type: EVS 63.2/22-6, 44kVA

Bewertungen

| Eine Rezension schreiben

CHF 1,660.25

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Steidele

62 143 57

sofort lieferbar

Security policy

Delivery terms

Return policy

Protection rating: IP44
Operating voltage: 230/400 V, 50 Hz
Housing made of galvanized sheet steel, powder-coated
RAL 2004 orange
With base frame
Components:
1 x power inlet via CEE appliance connector 5/63 A, 400 V
1 x cable loop as CEE socket 5/63 A, 400 V, unfused, without residual current protection
1 x residual current circuit breaker 63/4/0.03 A, all-current sensitive, type B, for CEE sockets
1 x residual current circuit breaker 40/4/0.03 A, type A, for Schuko sockets
2 x CEE sockets 5/16 A, 400 V, 2 machines C 16 A, 3-pin.
2 x CEE sockets 5/32 A, 400 V, 2 machines C 32 A, 3-pin.
6 x Schuko sockets 3/16 A, 230 V, 6 circuit breakers C 16 A, 1 pole.
Power output: 44 kVA
Dimensions (W x H x D): 610 x 730 x 400 mm
Weight: approx. 41 kg
