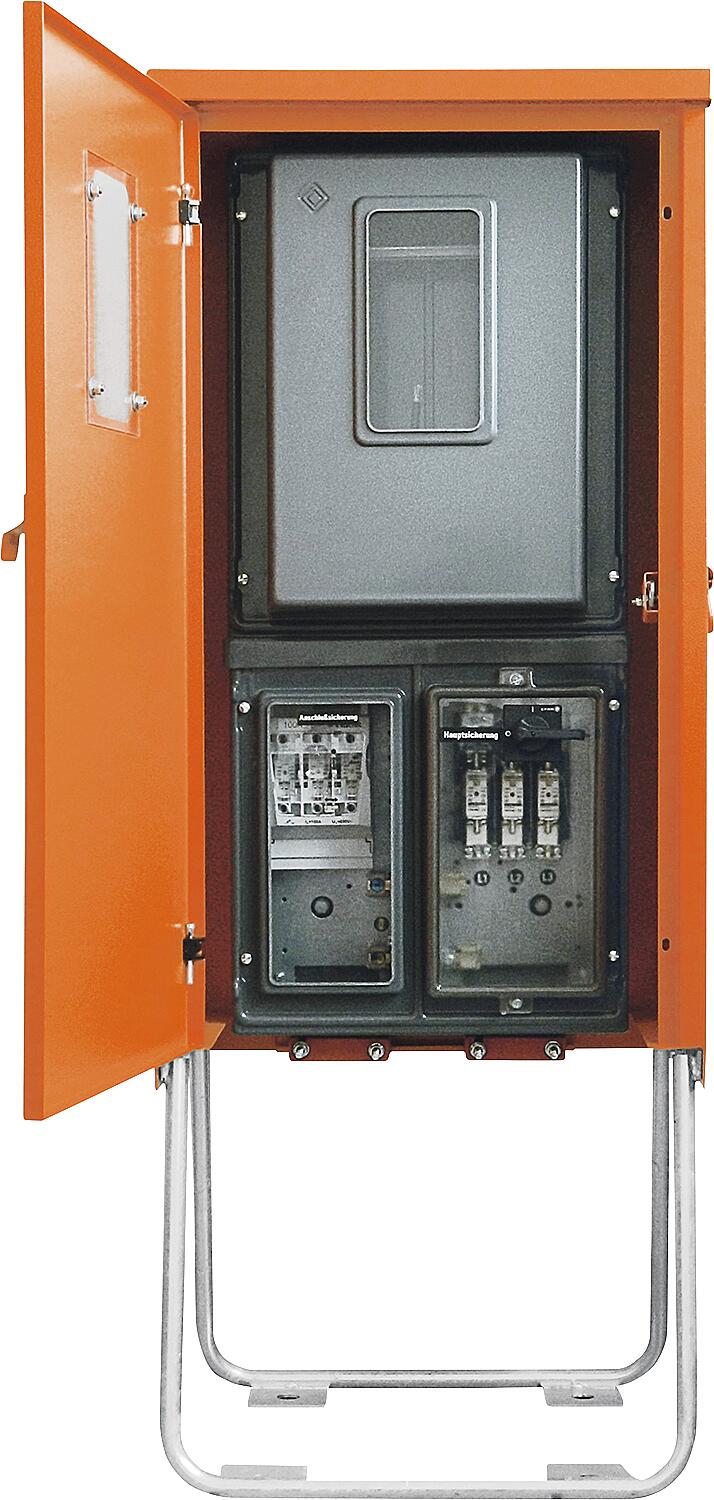

Connection cabinet A 80 55 kVA, 1 meter position load break switch

• Protection rating: All internal components are IP54
• Operating voltage: 230/400 V, 50 Hz
• Housing made of galvanized sheet steel, powder-coated RAL 2004 orange
• Includes base

Components:

• 1 x cable entry M 63 with strain relief
• 1 x connection fuse as NH 00 load break switch (protected with 100 A)
• 1 x meter position according to DIN 43870/2 (without meter)
• 1 x main fuse as load break switch with fuse NH 0080 A
• Dimensions (W x H x D): 500 x 930 x 310 mm
• Weight: approx. 34 kg
