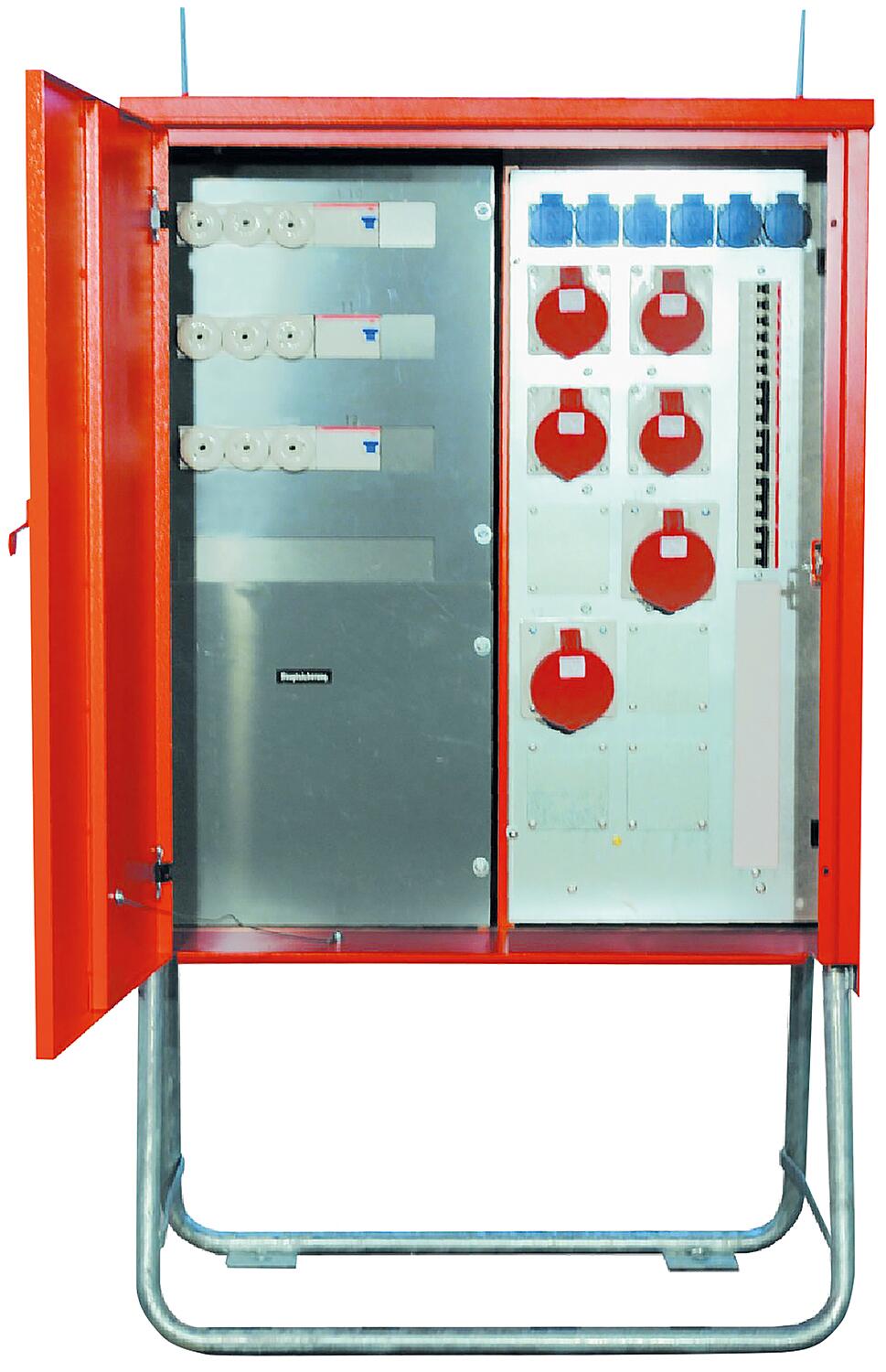

Distribution board, type: V 63.2/321-6, 44kVA

Bewertungen

| Eine Rezension schreiben

CHF 2,752.55

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Steidele

62 143 52

sofort lieferbar

Security policy

Delivery terms

Return policy

Protection rating: IP44
Operating voltage: 230/400 V, 50 Hz
Housing made of galvanized sheet steel, powder-coated
RAL 2004 orange
With base frame
Components:
2 x cable entries M 63 with strain reliefs
1 x main fuse as NH 00 load break switch with 3-pole fuse (protected with 63 A), lockable
Supply lines L1, L2, L3, N + PE/PEN with ferrule terminals up to max. 2x5x35 mm²
1 x residual current circuit breaker 63/4/0.3 A, type B, all-current sensitive, for CEE socket 5/63 A
1 x residual current circuit breaker 63/4/0.03 A, type B, all-current sensitive, for additional sockets
1 x residual current circuit breaker 63/4/0.03 A, type B, all-current sensitive, for additional sockets
2 x CEE sockets 5/32 A, 400 V, 2 machines C 32 A, 3-pin.
1 x CEE socket 5/63 A, 400 V, upstream fuse via main fuse
6 x Schuko sockets 3/16 A, 230 V, 6 circuit breakers C 16 A, 1 pole.
Power output: 44 kVA
Dimensions (W x H x D): 610 x 730 x 400 mm
Weight: approx. 29 kg
