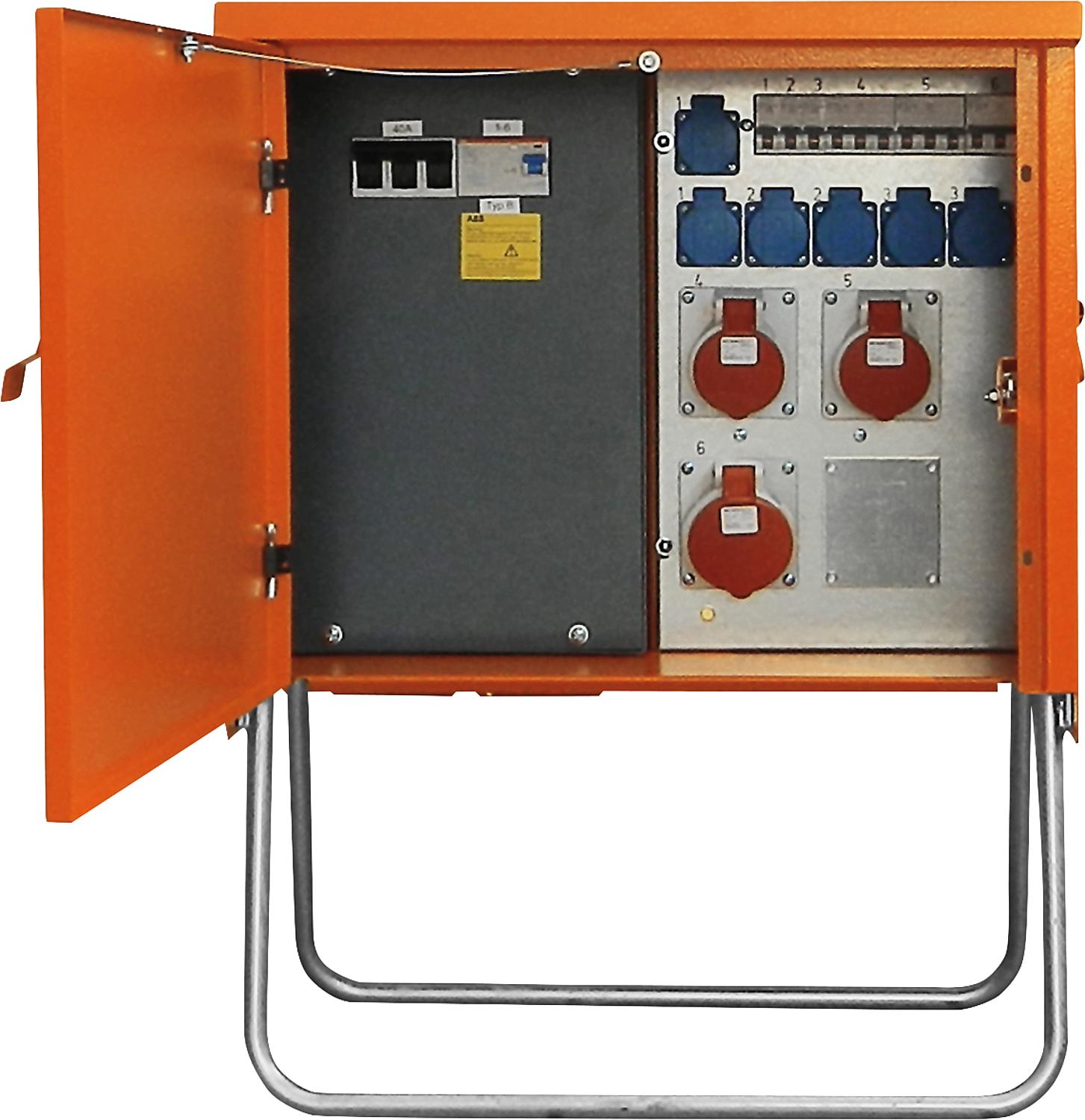

Distribution cabinet V 40.1/21-6 28 kVA, 40A, RCD type B CEE 2x16A, 1x32A, 6xSchuko

• Protection rating: All internal components are IP54
• Operating voltage: 230/400 V, 50 Hz
• Housing made of galvanized sheet steel, powder-coated RAL 2004 orange
• Includes base

Components:

• 2 x cable entry M 63 with strain relief
• 1 x main fuse as load break switch with fuse D02 Neozed E18, 3/63A (protected with 40 A)
• 1 x residual current circuit breaker, 4-pole, 40 A, 30 mA, type B
• 1 x CEE 5-pin, 32 A, 400 V, via 1 x LS C32 A, 3-pin
• 2 x CEE 5-pin, 16 A, 400 V, via 2 x LS C16 A, 3-pin
• 6 x Schuko sockets, 16 A, 230 V, via 3 x 16 A circuit breakers, single-pole
• Dimensions (W x H x D): 610 x 530 x 310 mm
• Weight: approx. 29 kg
