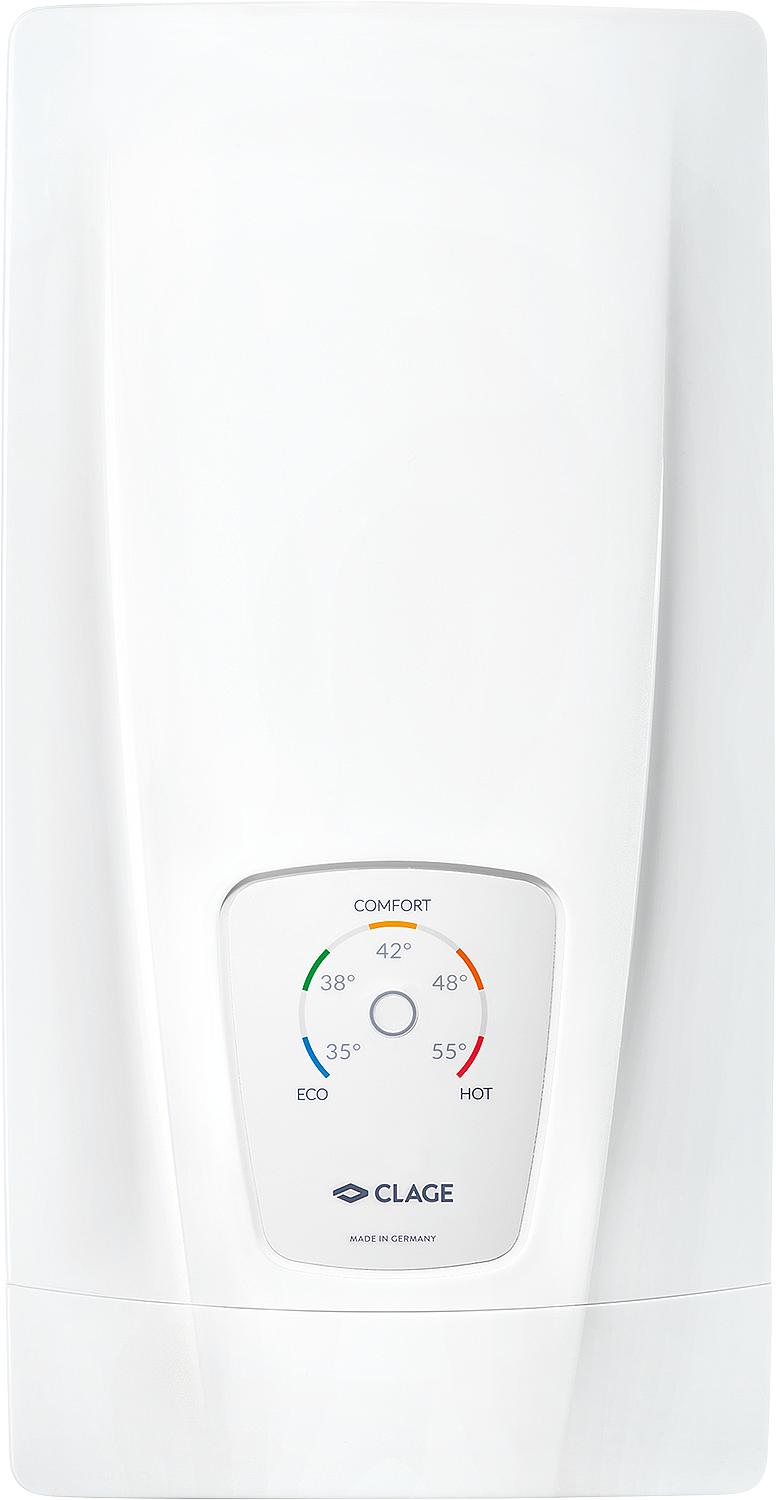

E-Komfortdurchlauferhitzer Clage DCX 13,11-13,5kW,400 Volt

• For one or more sampling points
• Electronically controlled
• Always precise temperatures thanks to TWIN TEMPERATURE Control TTC and dynamic flow rate control
• Electronic safety system with air bubble detection, temperature and pressure shutdown
• Max. power consumption: DCX NEXT (18-27 kW), is determined during installation for DCX 13 NEXT (11 or 13.5 kW)!

Area of ​​application
• Individual and group supply for bathroom, shower, kitchen sink or washbasin

Model DCX Next

Technical data
Energy efficiency class A
Rated power 4) [kW] 18 / 21 / 24 / 27
Voltage [V AC] 3~ / PE 380-415
Moisture protection rating according to VDE IP 25
Permissible operating pressure [bar] 10
Water connections (screw connections) DN 15 (1/2")
Temperature selection range [°C] 35 / 38 / 42 / 48 / 55
Hot water output at Δt = 28 K 1) [l/min] 9.2 / 10.7 / 12.3 / 13.8

Model DCX 13 Next

Technical data
Energy efficiency class A
Rated power 4) [kW] 11 / 13.5
Voltage [V AC] 3~ / PE 380-415
Moisture protection rating according to VDE IP 25
Permissible operating pressure [bar] 10
Water connections (screw connections) DN 15 (1/2")
Temperature selection range [°C] 35 / 38 / 42 / 48 / 55
Hot water output at Δt = 28 K 1) [l/min] 5.6 / 6.9
