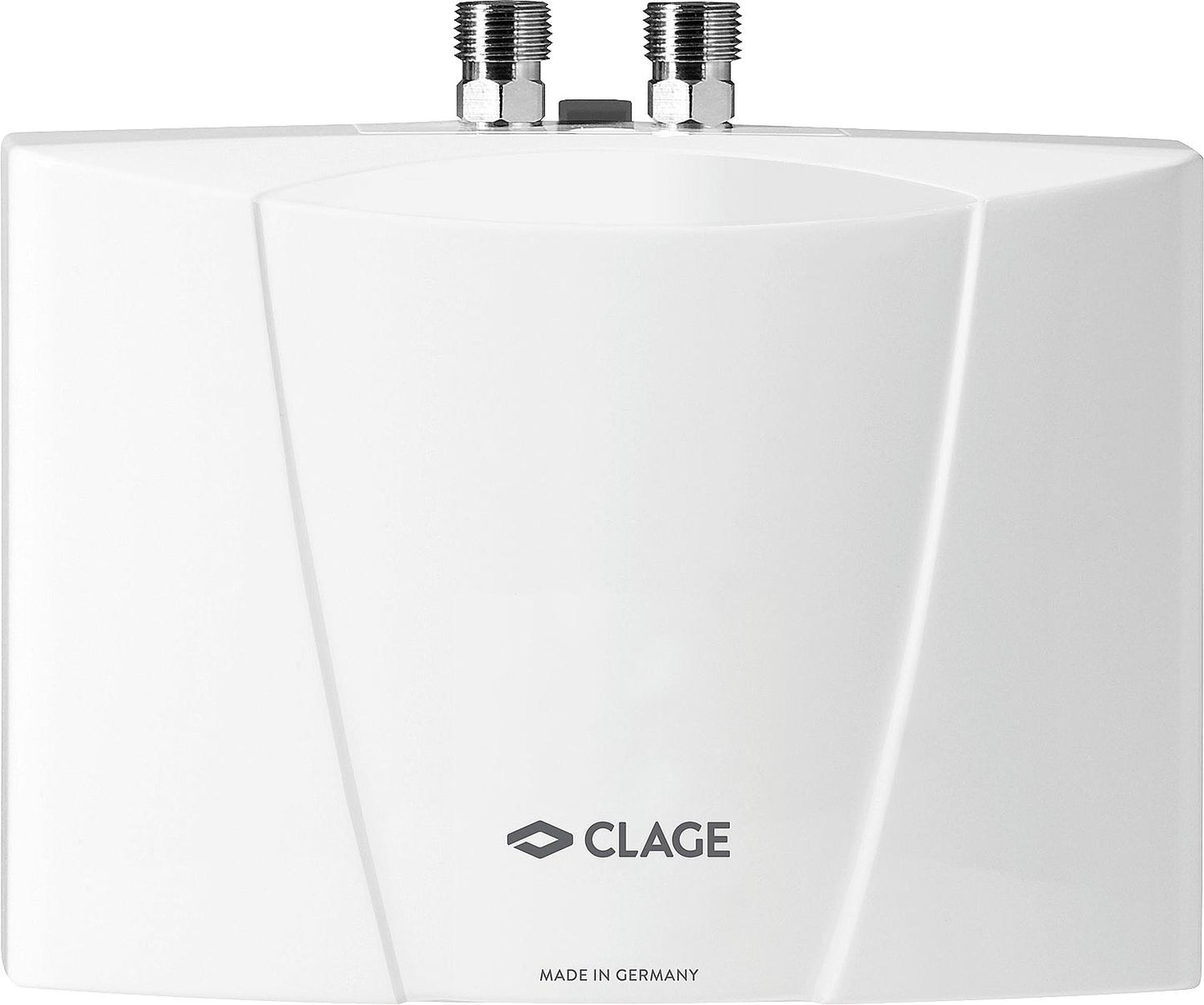

Kleindurchlauferhitzer Clage MBH 4, Druckfest 4,4KW-230V, Festanschluss 19A

• For one sampling point only • Hydraulically controlled small instantaneous water heater • Pressure-resistant design • With effective IES® bare wire heating system with safety temperature limiter, for supplying one tap (preferably a hand basin) • Removable cover for access to the hood screw and water volume adjustment • Replaceable heating element • Visually integrated wall mounts for easy snap-on installation • Special aerator • With T-piece DN10 (3/8") and flexible connecting hose DN10 (3/8") x 50 cm for easy retrofitting to existing pressure fittings • Power line • 3.5 kW plug-in ready, from 4.4 kW mains cable Area of ​​application • Hand basin, e.g., in the guest toilet • Sanitary facilities in offices, shops, restaurants and medical practices • Kitchen sink (only MBH 6 or MBH 7)

Model MBH	3	4	6	7
Technical data
Energy efficiency class	A*)	A*)	A*)	A*)
Rated power [kW]	3.5	4.4	5.7	6.5
Content [l]	0.2	0.2	0.2	0.2
Permissible operating pressure [MPa (bar)]	1 (10)	1 (10)	1 (10)	1 (10)
Water connections (screw connections)	DN 10 3/8"	DN 10 3/8"	DN 10 3/8"	DN 10 3/8"
Hot water output at Δt = 25 K 1) [l/min]	2.0	2.5	3.3	3.7
Switch-on max. flow rate [l/min]	1.3	1.8	2.2	2.4
Voltage [V AC]	1~ / N / PE 220-240	1~ / N / PE 220-240	1~ / N / PE 220-240	2~ / PE 400
Rated current [A]	15.2	19.1	24.8	16.3
Minimum required cable cross-section [ mm² ]	1.5	2.5	4.0	2.5
IES® Bare Wire Heating System 2) [Ω cm]	1100	1100	1100	1100
Approx. weight with water filling [kg]	1.5	1.5	1.5	1.5
Dimensions (W x H x D) [mm]	186 x 135 x 87	186 x 135 x 87	186 x 135 x 87	186 x 135 x 87
Humidity level according to VDE	IP 25	IP 25	IP 25	IP 25

Brand	CLAGE®
Manufacturer part number	1500-16003
Unit price	CHF/piece
kWatt	3.5
Type	MBH 3
Voltage [V]	1~/N/PE 220-240
EAN	4010436160038
