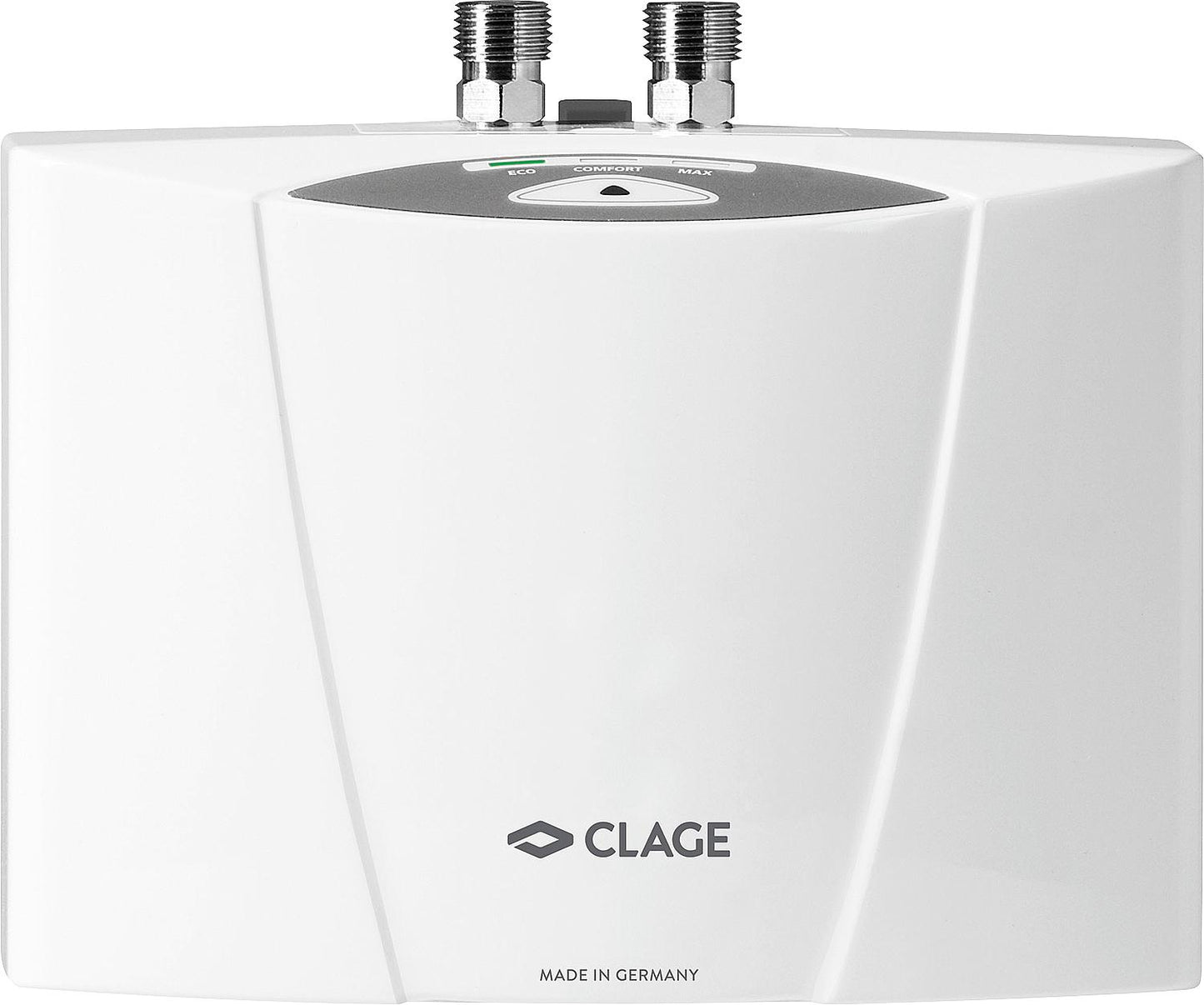

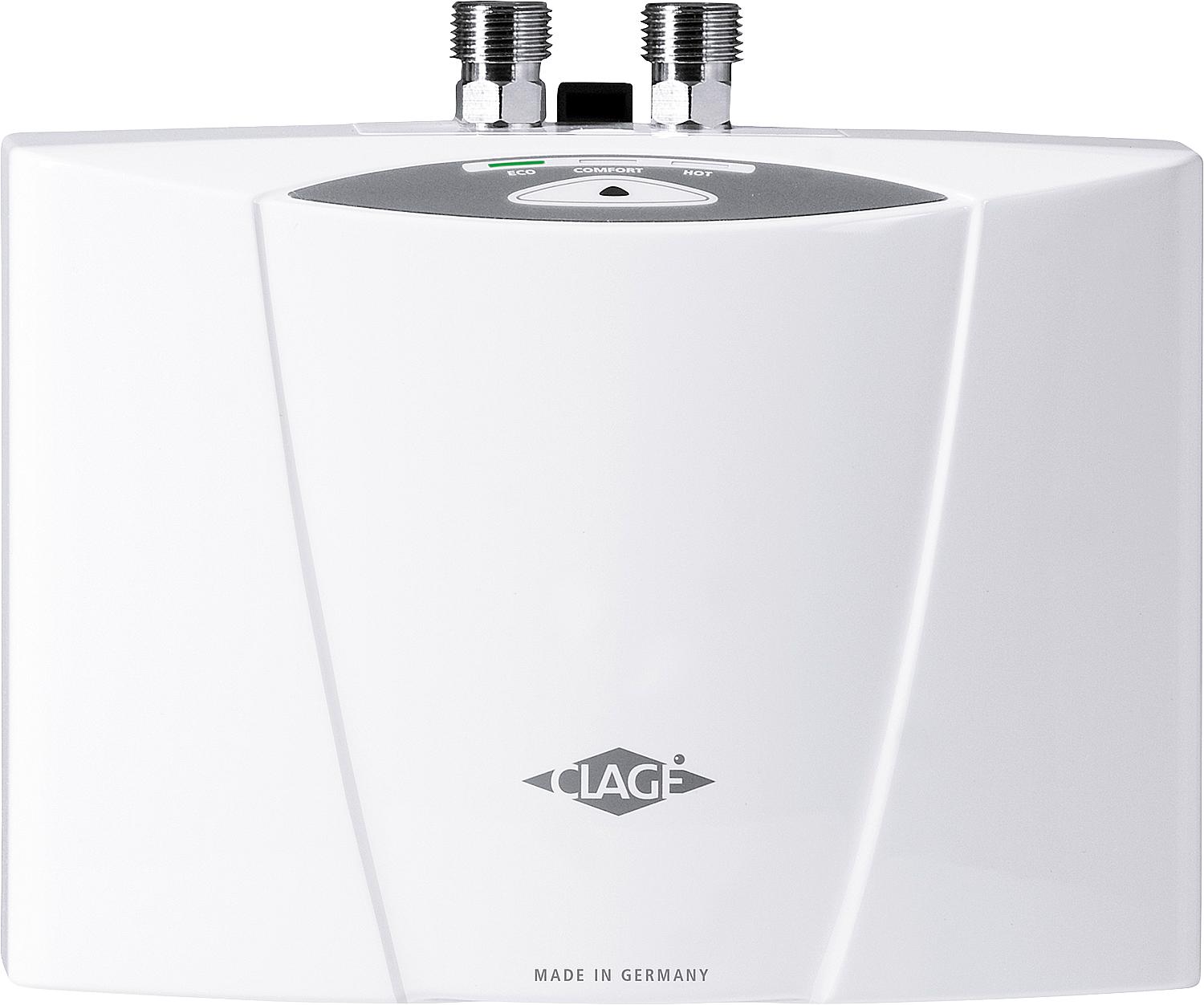

Kleindurchlauferhitzer MCX 7, elektronisch, 6,5KW, 400V

• For one sampling point only • Electronically controlled small instantaneous water heater • Saves up to 85% energy compared to conventional small storage systems • Compatible with solar panels • Sensor button and three differently colored LEDs for determining the maximum outlet temperature in three stages: ECO (35°C), Comfort (+38°C) and Max (+45°C) • Pressure-resistant design • Effective bare wire heating system IES • Mains connection cable approx. 650 mm long, ready to plug in (3.5 kW) or mains cable (from 4.4 kW) • Maintenance-friendly heating cartridge • Suitable for reheating preheated water (e.g. solar thermal system) • Energy efficiency class A Area of ​​application Also suitable for use with standard sanitary fittings for hand basins: • For touchless faucets • For stand-alone valves (no mixing of hot and cold water required) • At low flow water pressure • For a kitchen sink (MCX 6/7 only) • Handwashing basin

Model MCX	3	4	6	7
Technical data
Energy efficiency class	A*)	A*)	A*)	A*)
Rated power [kW]	3.5	4.4	5.7	6.5
Content [l]	0.2	0.2	0.2	0.2
Permissible operating pressure [MPa (bar)]	1 (10)	1 (10)	1 (10)	1 (10)
Water connections (screw connections)	DN 10 3/8“ 1)	DN 10 3/8“ 1)	DN 10 3/8“ 1)	DN 10 3/8“ 1)
Hot water output at Δt = 25 K 2) [l/min]	2.0	2.5	3.3	3.7
Switch-on max. flow rate 3) [l/min]	1.2 - 2.0	1.5 - 2.5	1.5 - 3.3	1.5 - 3.7
Voltage [V AC]	1~ / N / PE 220-240	1~ / N / PE 220-240	1~ / N / PE 220-240	2~ / PE 400
Rated current [A]	15	19	25	2 x 16
Minimum required cable cross-section 4) [ mm² ]	1.5	2.5	4.0 5)	2.5
IES® Bare Wire Heating System 6) [Ω cm]	1100	800	800	1100
Approx. weight with water filling [kg]	1.5	1.5	1.5	1.5
Suitable for solar thermal systems (inlet temperature < 70°C)	•	•	•	•
Humidity level according to VDE	IP 25	IP 25	IP 25	IP 25

*) This information complies with the provisional requirements for EU Regulation No. 812/2013, which will become binding from September 2015. 1) 1/2" water connections on request 2) Temperature increase from, for example, 15°C to 40°C 3) Flow rate limited for optimal temperature increase. Can be adjusted by adjusting the water flow rate. 4) Observe the regulations of the local energy supplier 5) Only the power cord supplied by the manufacturer may be used. 6) Minimum permissible electrical resistance of water at 15°C Keypad The control panel with the sensor button and three colored LEDs is used to set the maximum outlet temperature to 35, 38 or 45°C.

Brand	CLAGE®
Manufacturer part number	1500-15003
Rated power	3.5 kW
Unit price	CHF/piece
Type	MCX 3
Voltage	230 V
EAN	4010436150039
