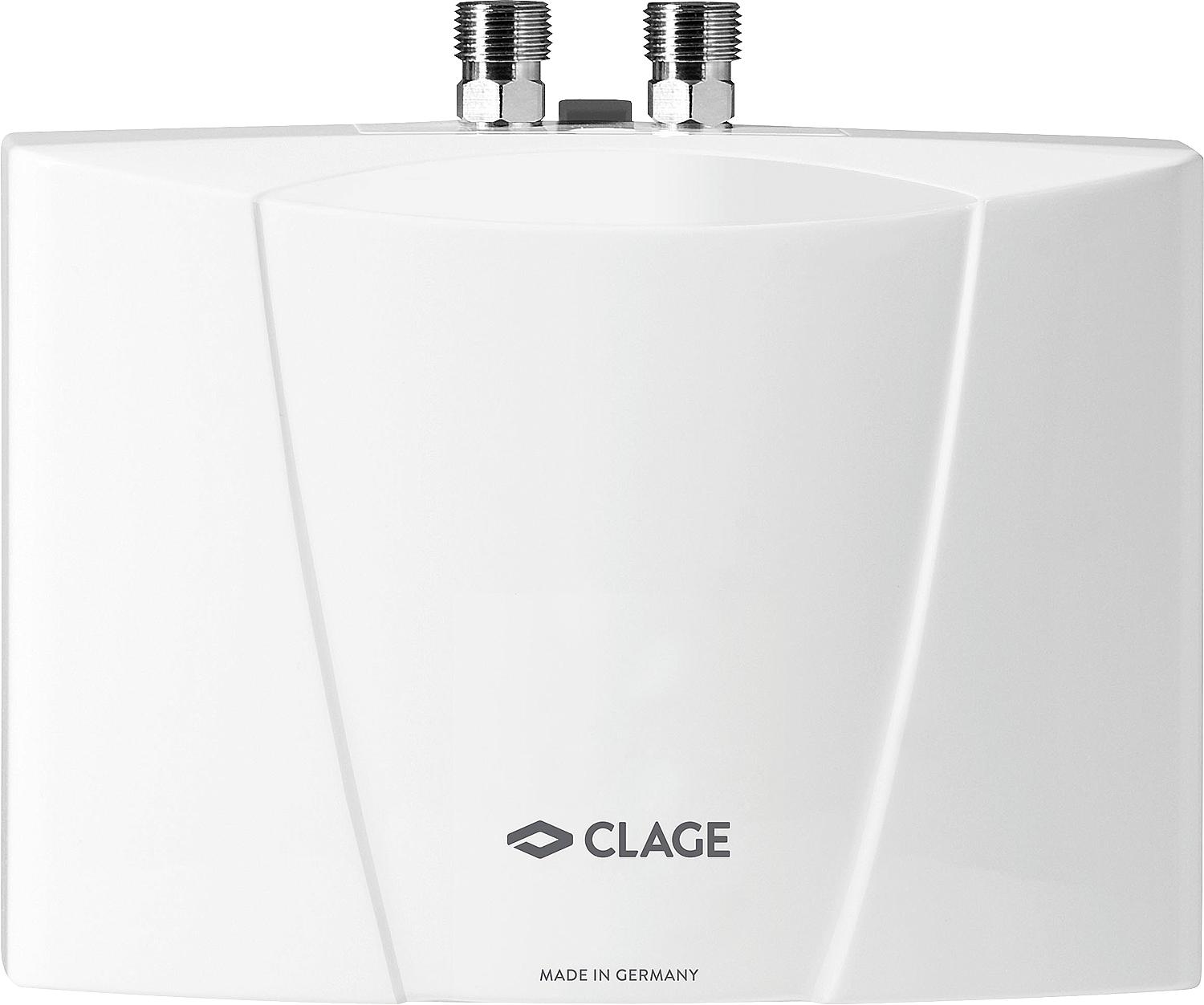

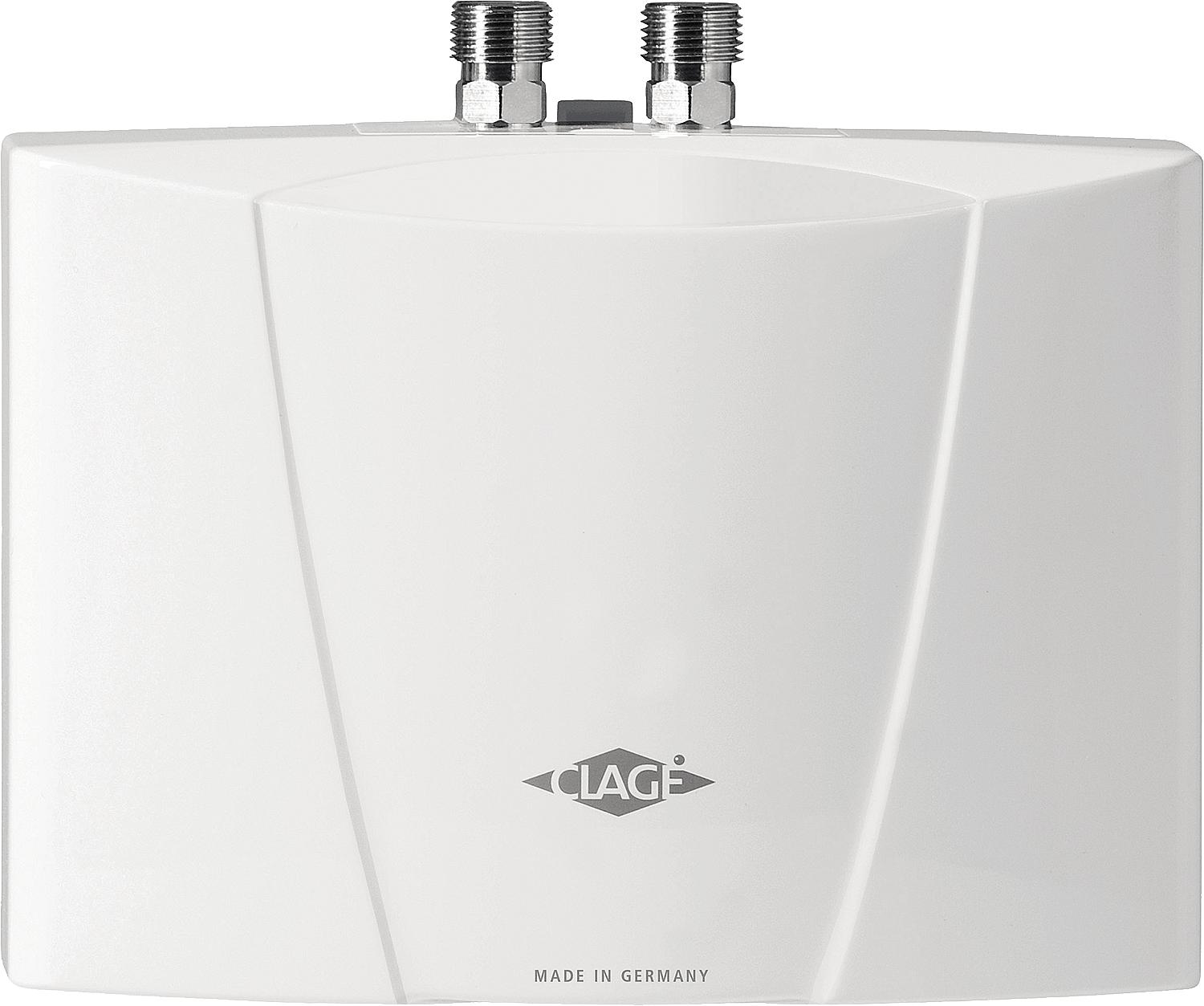

Kleindurchlauferhitzer Clage M3 drucklos, 3,5KW/230V, Untertisch

• For one sampling point only • Hydraulically controlled small instantaneous water heater • Unpressurized design • With effective and maintenance-friendly IES® bare wire heating system, for supplying one tap (preferably a hand basin) • Removable cover for access to the hood screw and water volume adjustment • Replaceable heating element • Visually integrated wall mount for easy clip-on installation • Special aerator • 3.5 kW plug-in ready, from 5.7 kW mains cable Area of ​​application • Handwashing basin, such as in a guest toilet • Sanitary facilities in offices, shops, restaurants and medical practices • Kitchen sink (from 6.5 kW) MH 7

Model M	3	6	7
Technical data
Energy efficiency class	A*)	A*)	A*)
Rated power [kW]	3.5	5.7	6.5
Content [l]	0.2	0.2	0.2
Water connections (screw connections)	DN 10 (3/8")	DN 10 (3/8")	DN 10 (3/8")
Hot water output at Δt = 25 K 1) [l/min]	2.0	3.3	3.7
Switch-on max. flow rate [l/min]	1.3	2.2	2.4
Voltage [V AC]	1~ / N / PE 220-240	1~ / N / PE 220-240	2~ / PE 400
Rated current [A]	15.2	25	16.3
Minimum required cable cross-section [ mm² ]	1.5	4.0	2.5
IES® Bare Wire Heating System 2) [Ω cm]	1100	1100	1100
Approx. weight with water filling [kg]	1.5	1.5	1.5
Dimensions (W x H x D) [mm]	186 x 135 x 87	186 x 135 x 87	186 x 135 x 87
Humidity level according to VDE	IP 25	IP 25	IP 25

*) This information complies with the requirements of the EU regulation that became binding in September 2015. No. 812/2013 1) Temperature increase from e.g. 15°C to 40°C 2) Minimum permissible electrical resistance of water at 15°C

Brand	CLAGE®
Manufacturer part number	1500-17006
Rated power	5.7
Unit price	CHF/piece
Type	M6
Voltage	1~/N/PE 220-240
EAN	4010436170068
