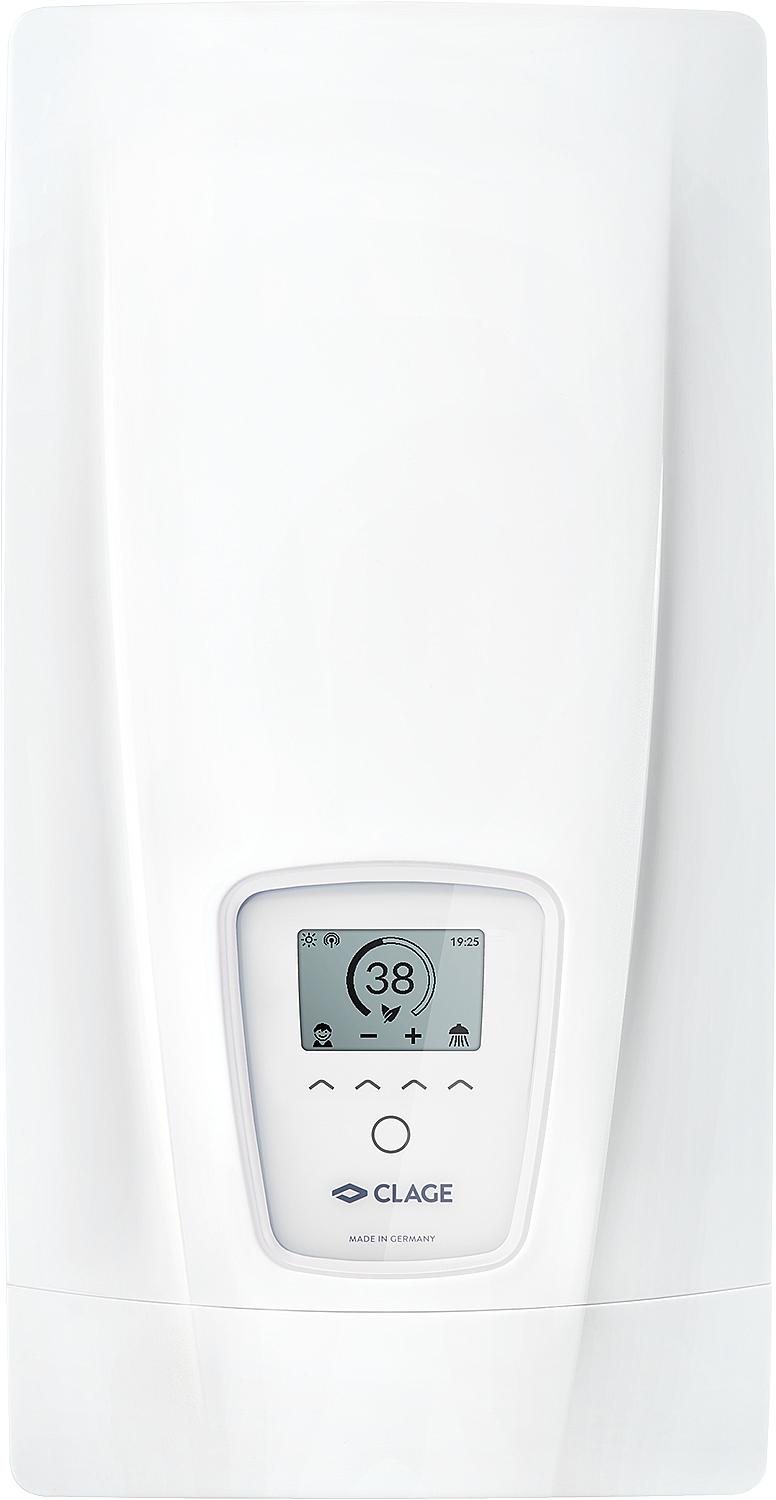

Grossdurchlauferhitzer Clage DEX Next, 18-27KW / 400V, HxBxT:4687x238x96mm

• For one or more sampling points • Suitable for solar thermal systems up to a maximum inlet temperature of 60°C • Electronically controlled • Always precise temperatures thanks to TWIN TEMPERATURE Control (TTC) • Electronic safety system with air bubble detection, temperature and pressure shutdown • The bare wire heating system ensures a longer service life, less limescale buildup, and is efficient and easy to maintain. • Easy installation thanks to ample installation space and variable connection options • Module for wireless remote control available as an accessory • Can also be controlled via tablet or smartphone (from iOS 9 / Android OS 4.4) (this requires an FXE 3 radio adapter and the app »Smart Control«) • Max. power consumption: 18-27 kW, determined during installation! Comfortable e-paper display The DEX Next is controlled via a high-contrast e-paper display with touch-sensitive buttons. Up to four user profiles with different applications can be individually customized. The device records electricity and hot water consumption data, which can be viewed in the statistics section.

Model	DEX NEXT
Technical data
Rated power 4) [kW]	18 / 21 / 24 / 27
Energy efficiency class	A *)
Contents [Liters]	0.4
Permissible operating pressure [MPa (bar)]	1 (10)
Water connections (screw connections)	DN 15 (1/2")
Temperature selection range [°C]	20 to 60
Hot water output at Δt = 28 K 1) 2) 3) [l/min]	9.2 / 10.7 / 12.3 / 13.8
Switch-on max. flow rate [l/min]	1.5 - 8.0 4)
Voltage [V AC]	3~ / PE 400
Rated current [A]	3x26 / 3x30 / 3x35 / 3x39
Minimum required cable cross-section [ mm² ]	4.0 / 4.0 / 6.0 5) / 6.0
Specific water resistance at 15°C [Ω cm]	1100
Approx. weight with water filling [kg]	3.9
Moisture protection level according to VDE	IP 25

*) This information complies with the provisional requirements for EU Regulation No. 812/2013, which will become binding from September 2015. 1) Temperature increase, e.g., from 12°C to 40°C 2) Mixed water 3) Depending on the set connection power 4) Observe the regulations of the local energy supplier 5) When replacing a 21 kW/380 V device, the conductor cross-section of 4 mm² can be used.

Brand	CLAGE®
Manufacturer part number	3200-36400
Unit price	CHF/piece
Type	DEX 18 - 27
Energy Efficiency Class	A
EAN	4010436364009
