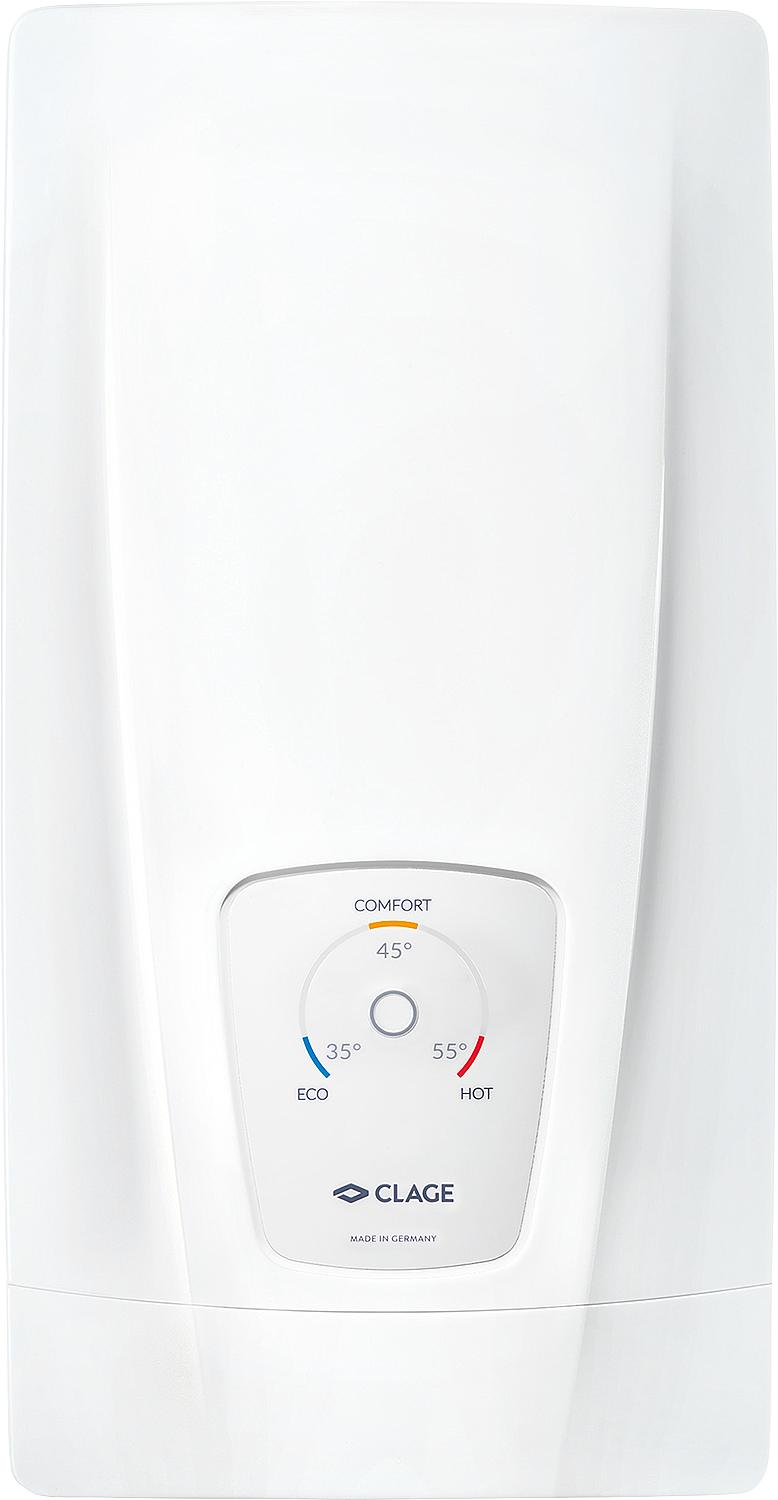

E-Komfortdurchlauferhitzer Clage DLX Next, 24kw, 400 Volt

• For one or more sampling points
• Electronically controlled
• One-button control panel for quick and easy temperature selection
- In three stages: 35°C, 45°C and 55°C
• Always precise temperatures thanks to TWIN TEMPERATURE Control TTC and dynamic flow rate control
• Electronic safety system with air bubble detection, temperature and pressure shutdown
• Particularly low activation water flow rate from 1.5 l/min
Areas of application
• Individual and group supply for bathroom, shower, kitchen sink or washbasin

Model DLX 18 DLX 21 DLX 24
Technical data
Energy efficiency class A A A
Rated power [kW] 18 21 24
Voltage [V/AC] 3~ / PE 400 3~ / PE 400 3~ / PE 400
Moisture protection rating according to VDE (IP) 25 25 25
Permissible operating pressure [bar] 10 10 10
Water connections (screw connections) DN 15 (1/2") DN 15 (1/2") DN 15 (1/2")
Temperature selection range [°C] 35/45/55 35/45/55 35/45/55
Hot water output at Δt = 28 K [l/min] 9.2 10.7 12.3
