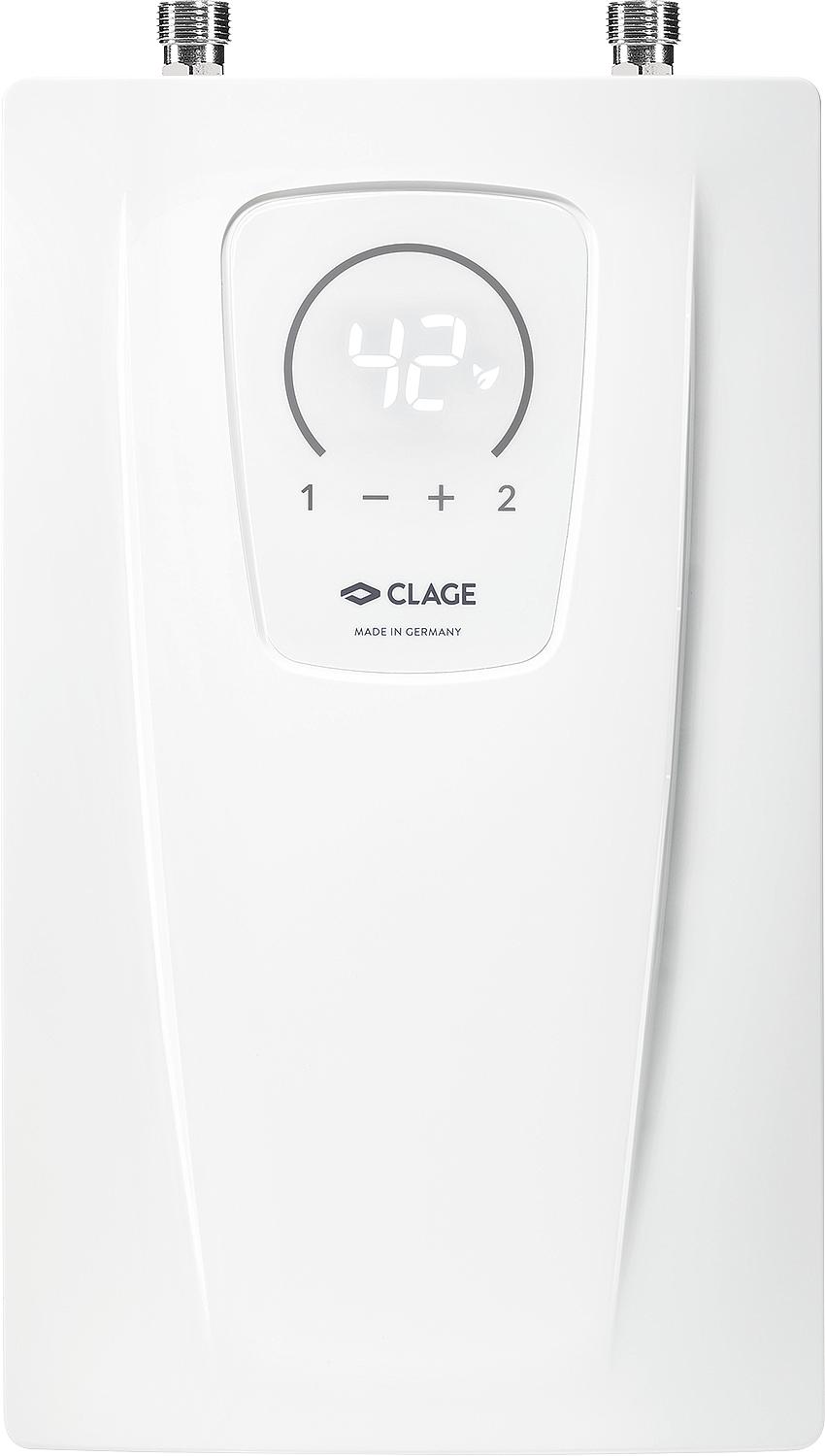

Elektronischer Durchlauferhitzer Typ CEX /11 - 13,5KW, 400V Obertisch

• For one or two sampling points
• Electronically controlled instantaneous water heaters
• Sensor keypad with LED display for precise temperature input between 20°C and 60°C
• Two program buttons for individual preset values
• Always precise temperatures thanks to TWIN TEMPERATURE Control (TTC)
• Maximum power consumption is set during installation: 11 or 13.5 kW
• Suitable for solar thermal systems up to a maximum inlet temperature of 60°C
• Can also be controlled via tablet or smartphone (this requires an FXE (C) wireless adapter and the app) not included in the scope of delivery
• With 600 mm mains connection cable for a 3-phase cooker connection box

Area of ​​application:
• Kitchen sink, washbasin and double washbasin

Technical specifications CEX upper table:
• Energy efficiency class: A
• Rated power (kW): 11 / 13.5
• Voltage (V /AC): 3~ / PE 400
• Moisture protection rating according to VDE (IP): 25
• Permissible operating pressure (bar): 10
• Water connections (screw connections): DN 15 (1/2")
• Temperature selection range (°C): 20 to 60°C
• Hot water output at Δt = 33 K (l/min): 4.8 / 5.8

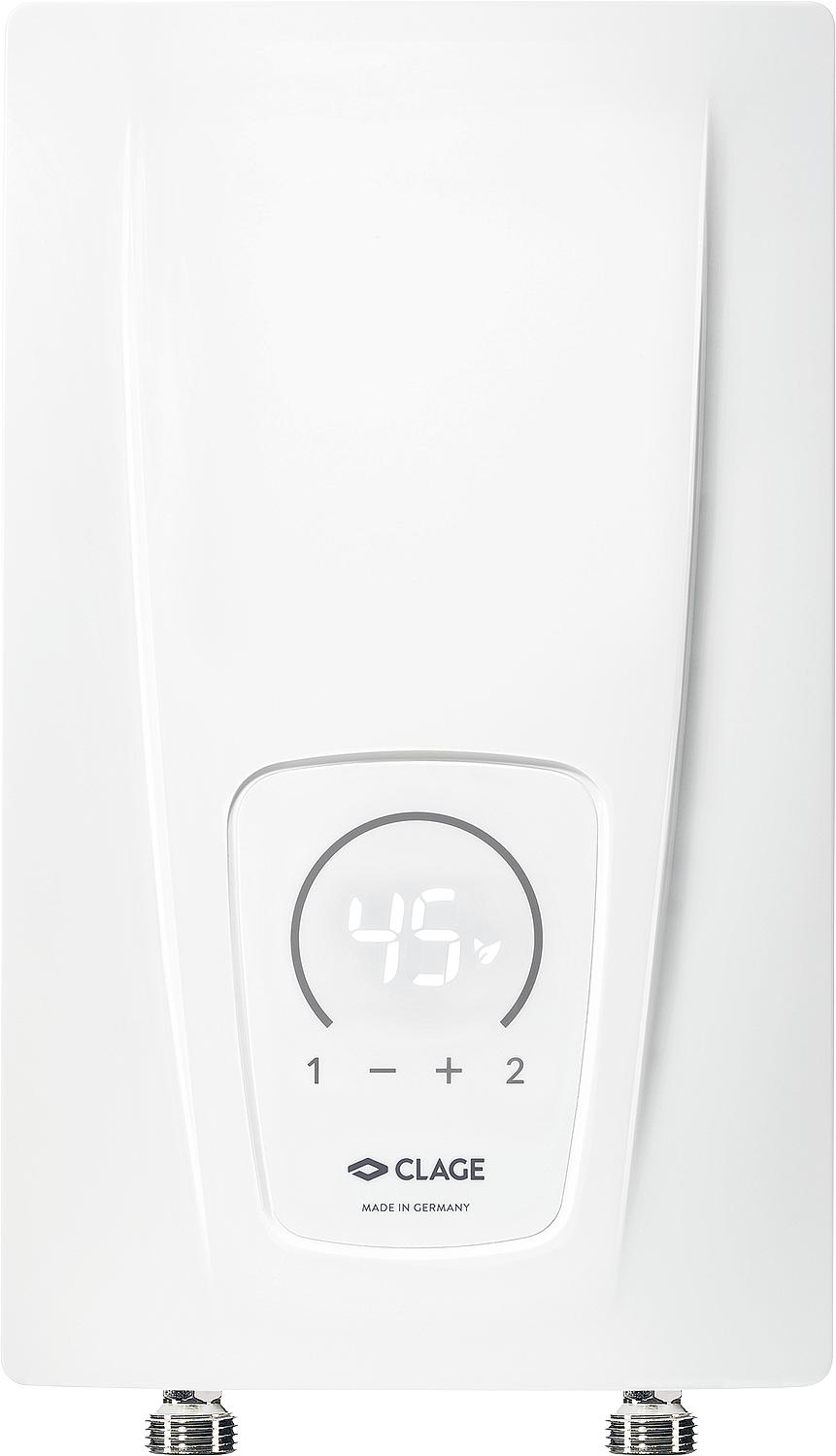

Technical specifications CEX under-table:
• Energy efficiency class: A
• Rated power (kW): 11 / 13.5
• Voltage (V /AC): 3~ / PE 400
• Moisture protection rating according to VDE (IP): 25
• Permissible operating pressure (bar): 10
• Water connections (screw connections): DN 10 (3/8")
• Temperature selection range (°C): 20 to 60°C
• Hot water output at Δt = 33 K (l/min): 4.8 / 5.8
