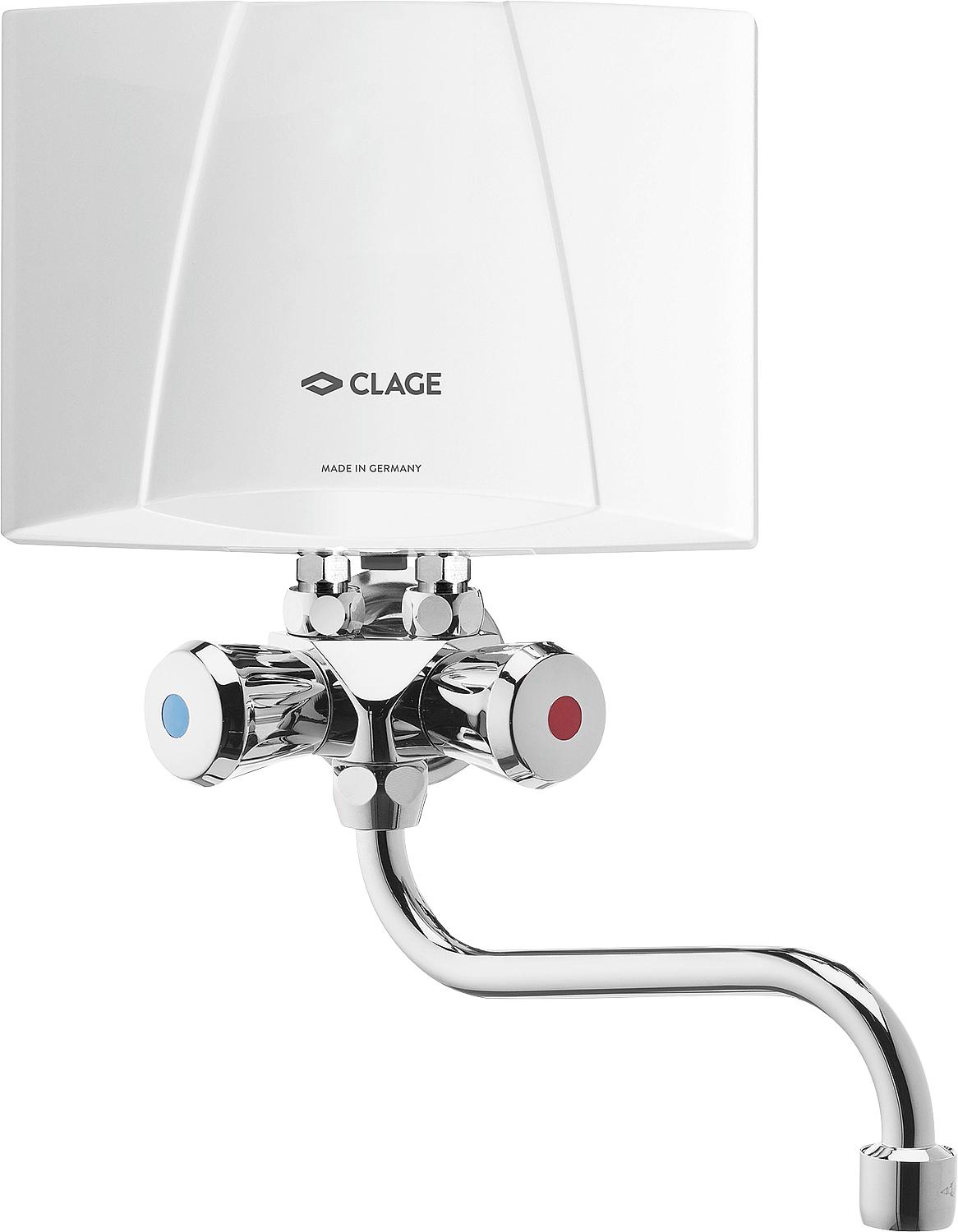

Kleindurchlauferhitzer Clage M3/SMB m.Zweigriffmischer,230V, Übertisch,drucklos

• For one sampling point only • With special mixer tap (pressureless design), 16 cm long swivel spout • The heating element switches on automatically as soon as water flows through the device. • New flow technology for optimal water jet with economical water consumption • Up to 85% energy savings compared to conventional small storage systems • Effective and maintenance-friendly IES® bare wire heating system with replaceable heating cartridge • Easy installation with special mixer tap and mains connection cable (M3 / SMB with plug) • 3.5 kW plug-in ready, from 6.5 kW mains cable Area of ​​application • Individual taps such as washbasins, sinks or utility sinks • The highest possible power setting should be selected for rinsing (M7/SMB)

Model M	3/SMB	7/SMB
Technical data
Energy efficiency class	A*)	A*)
Rated power [kW]	3.5	6.5
Content [l]	0.2	0.2
Water connections (screw connections)	DN 10 3/8"	DN 10 3/8"
Hot water output at Δt = 25 K 1) [l/min]	2.0	3.7
Switch-on max. flow rate [l/min]	1.3	2.4
Voltage [V AC]	1~ / N / PE 220-240	2~ / PE 400
Rated current [A]	15.2	16.3
Minimum required cable cross-section [ mm² ]	1.5	2.5
IES® Bare Wire Heating System 2) [Ω cm]	1100	1100
Approx. weight with water filling [kg]	1.5	1.5
Dimensions (W x H x D) [mm]	186 x 135 x 88	186 x 135 x 88
Humidity level according to VDE	IP 25	IP 25

*) This information complies with the requirements of the EU regulation that became binding in September 2015. No. 812/2013 1) Temperature increase from e.g. 15°C to 40°C 2) Minimum permissible electrical resistance of water at 15°C

Brand	CLAGE®
Manufacturer part number	1500-17107
Unit price	CHF/piece
Type	M7 / SMB
EAN	4010436171072
